WY-800 Automatic Top Button Zipper Bag Making Machine

Garment bags with a resealable top button zipper — the kind used to package folded clothing, knitwear, or retail textile goods — need a very specific kind of bag-making equipment, because the zipper itself has to be welded onto the film accurately before the bag is even cut. That's the job this machine is built for.

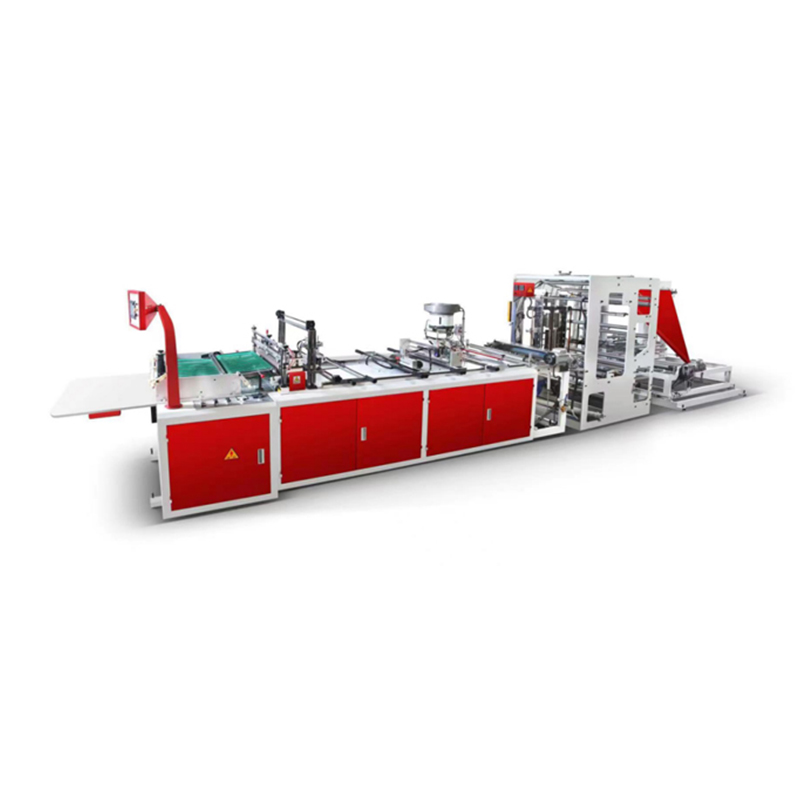

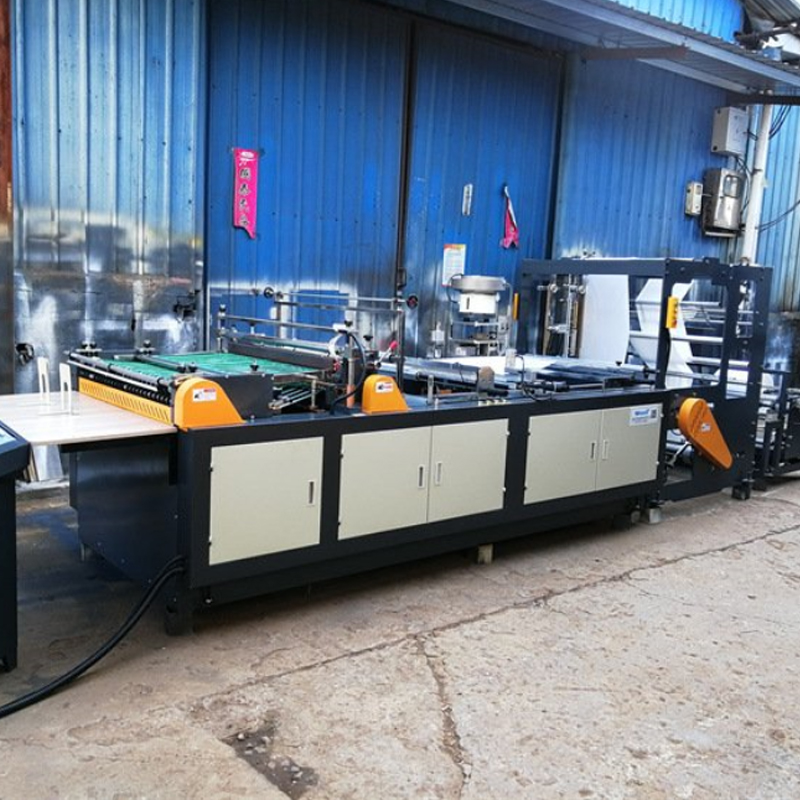

The WY-800 Automatic Top Button Zipper Bag Making Machine takes rolled PE, PP, OPP, or BOPP film, welds a reusable top button zip strip onto it using a heated copper knife, then cuts and shapes the finished bag using a separate cold knife. The zipper welding step is what makes this machine different from a standard flat bag or vest bag line — it's purpose-built for producing bags people open and reseal repeatedly, not single-use packaging.

Model	MD-800
Machine speed	20~150pcs/min
Bag width	50~700mm
Bag length	50~700mm
Bag making thickness	3~10
Voltage	220v/380V
Total power	9kw
Overall dimension	8000×1300×1900mm
Weight	2080KG
Knife	It is equipped with a set of hot zipper forging copper knife, a set of bag cutting forging imported steel knife and a set of coldknife
Unwinding diameter	600mm (with automatic deviation correction, automatic magnetic particle constant tension, automatic feeding and automatic shutdown without material)
Pneumatic punch	Round hole 1 pc
Pneumatic hole punch	One pay for portable hole, one pay for round hole.
Conveyor belt	Imported KODAK brand
Automatic photoelectric tracking	Imported from Germany
Electric control system of the whole machine	Special multi-motor tension drive system Stepping motor Songyang brand (servo motor can be used)
Frequency conversion gear motor	Guangdong Wanxin
Relay	Omron
Pneumatic components	Adecco, Shenzhen, etc.
Guangdong production	1 set of auto-buckling vibrating disc, 1 set of buckling moulds
Ultrasonic bag mouth flattening reinforcement	Guangdong
Temperature Display Instrument	Shanghai temperature meter, display the surface temperature of preheating roller
Commonly used electrical components/switches	Astronergy
Inverter	Changsha Beside
Computer touch screen	Taiwan Virent
PLC	Mitsubishi
Inverter motor	Shanghai Speed River
Products available Bearing	Mostly imported from Japan
Free accessories list	Temperature control line 1, high temperature cloth 1, spring 50, random accessories, a set of tool box, a grease gun, temperature control table 1, heating tube 1, switch each of all the instructions for this machinery.
Use: Apply to PE, PP, OPP, BOPP and other plastic materials automatically on the zip bag, made of knitting, clothing, food, stationery and other packaging, is currently replacing the import of similar products of advanced bag-making equipment.

Main Applications

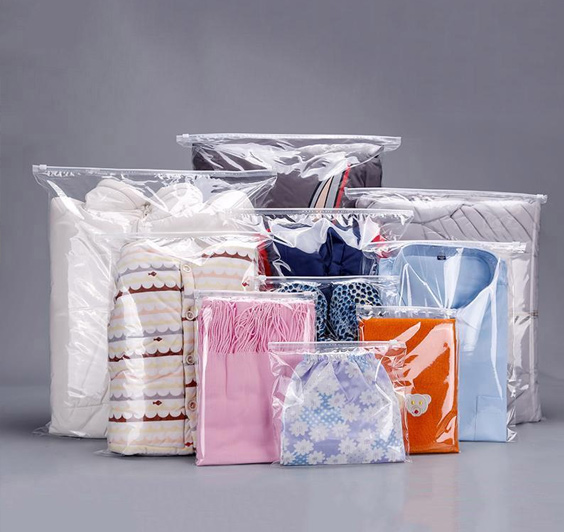

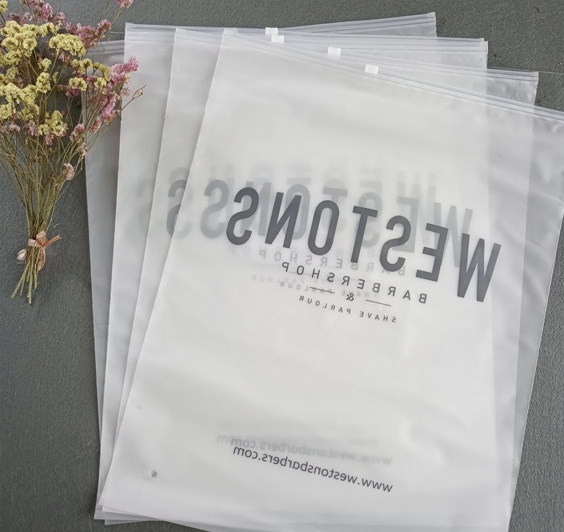

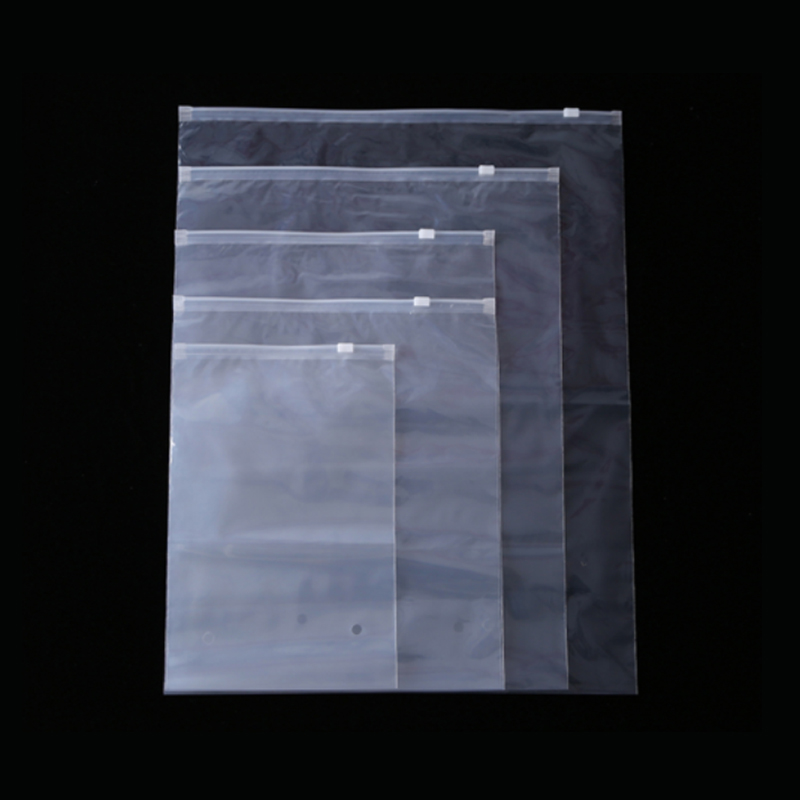

1. Producing resealable zip bags for folded clothing and knitwear packaging
2. Manufacturing garment bags for apparel exporters and textile wholesalers
3. Making zip-top bags for food packaging where resealing matters
4. Producing stationery and small retail item packaging with a zip closure

Core Functions

The zipper welding system is the defining feature of this machine — a forged copper heating knife attaches the top button zip strip to the film, while a separate forged steel knife and cold knife handle bag cutting, keeping the heat-sensitive welding step apart from the cutting step.

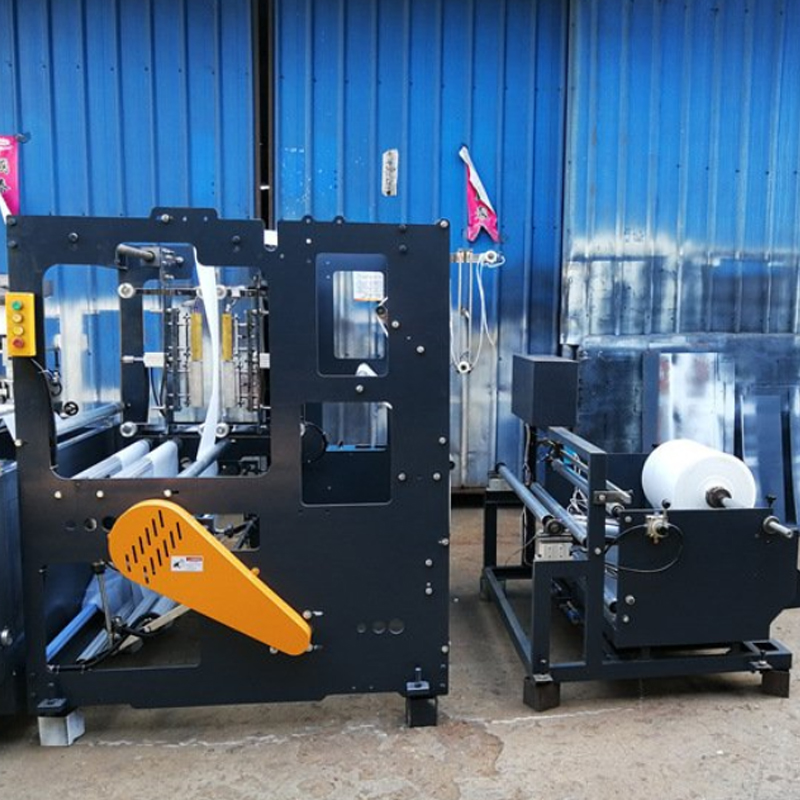

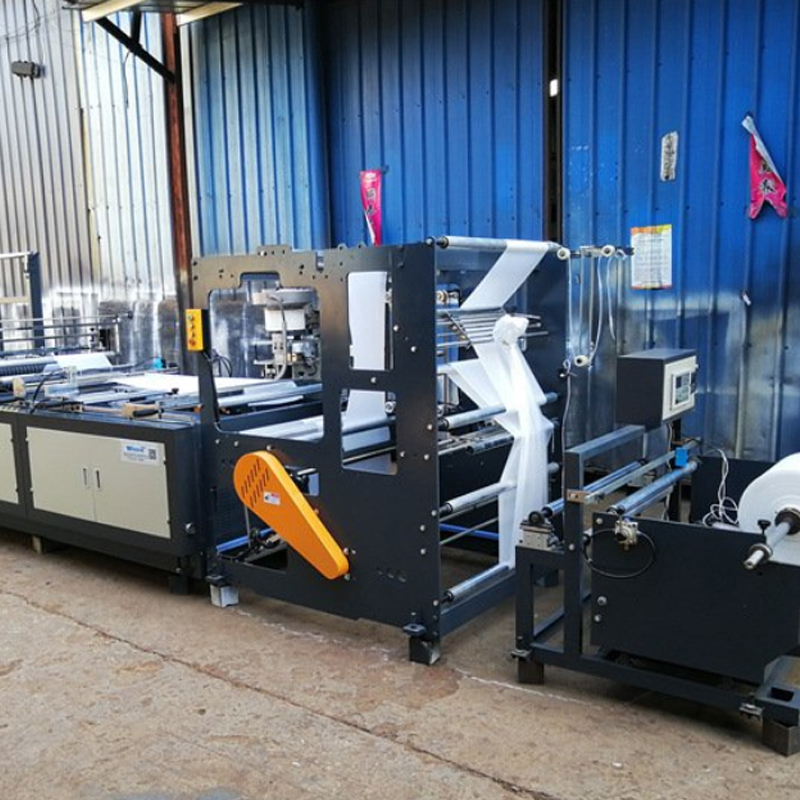

Unwinding runs on a 600mm-diameter system with automatic deviation correction, magnetic-particle constant tension control, automatic feeding, and automatic shutdown when the film roll runs out — reducing the amount of manual monitoring needed during a production run.

Two pneumatic punch stations are built in: one for round holes and one with an interchangeable head for portable-style holes, letting the same machine handle different hole styles without a separate punching unit.

A Mitsubishi PLC paired with a Taiwan-made touch screen controls the whole line, while photoelectric tracking (imported from Germany) keeps film alignment accurate as it moves through zipper welding and cutting.

The drive system uses a stepping motor as standard, with the option to upgrade to a servo motor for buyers who need tighter precision at higher output.

Practical Solutions

Converters new to zip-bag production often run two separate machines — one for zipper attachment, one for bag forming — which adds handling steps and machine costs. This machine combines both into a single line, cutting out that extra step entirely.

Zip strip welding quality is a common failure point on lower-grade equipment, where uneven heat can weaken the zipper seal. The forged copper welding knife on the WY-800 Automatic Top Button Zipper Bag Making Machine is built specifically to keep that weld consistent across a full production run.

Buyers looking for zip bag machinery can benefit from a reliable export supplier that provides efficient zipper-welding solutions, stable production performance, and flexible shipping options. This machine delivers the zipper-welding functions required for modern bag manufacturing while helping international customers optimize procurement processes and improve production efficiency.

OEM/ODM Support

Wenzhou Chaoshun Machinery offers OEM and ODM adjustments on this machine, including drive system upgrades (stepping motor to servo motor), punch head configuration, and accessory brand selection. Buyers producing a specific garment bag size range or targeting a particular film type can work with the factory to configure the WY-800 Automatic Top Button Zipper Bag Making Machine before delivery.
