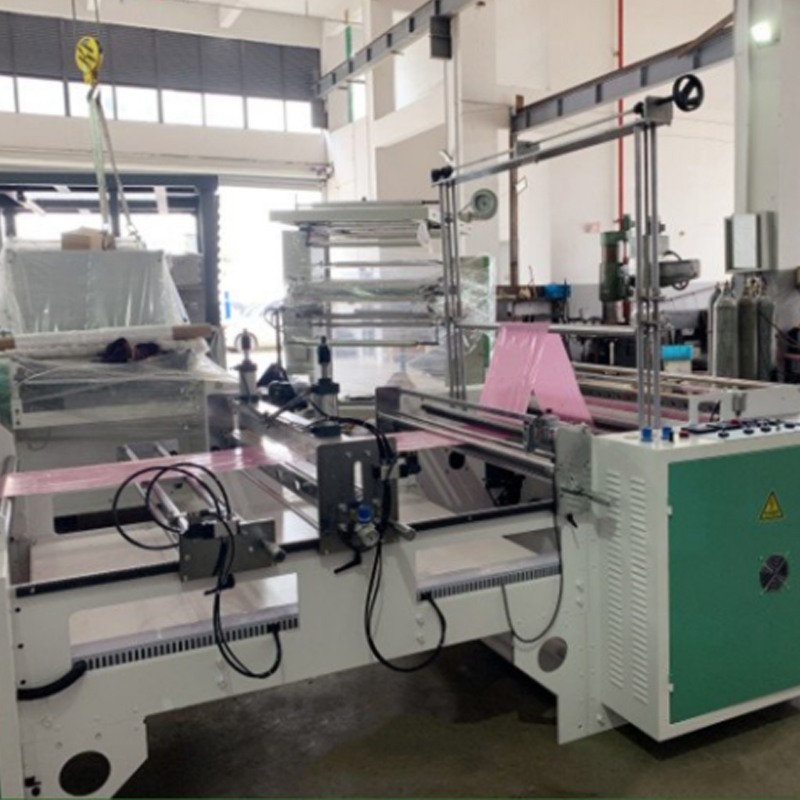

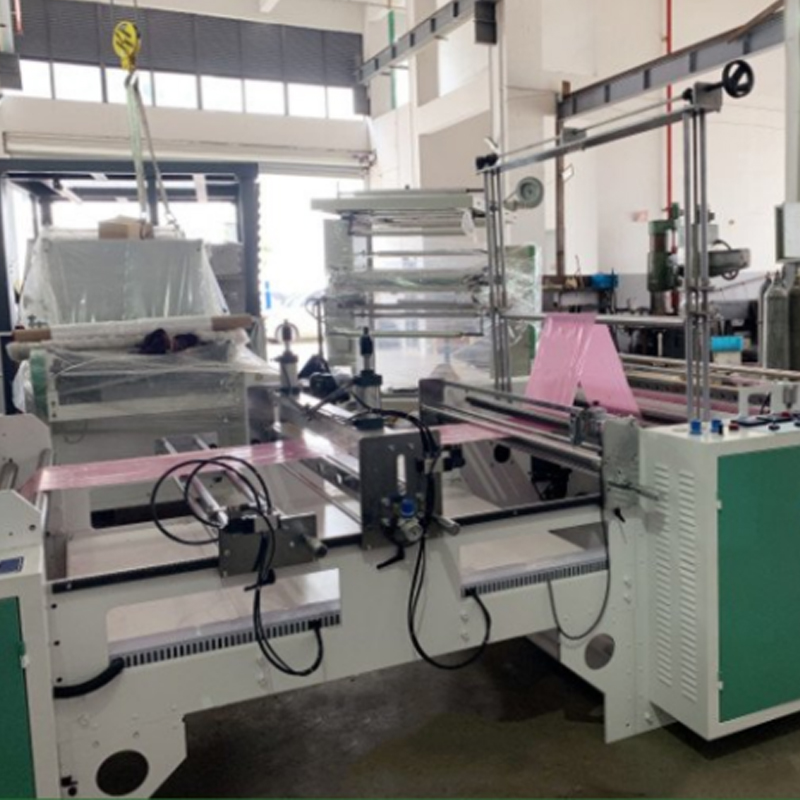

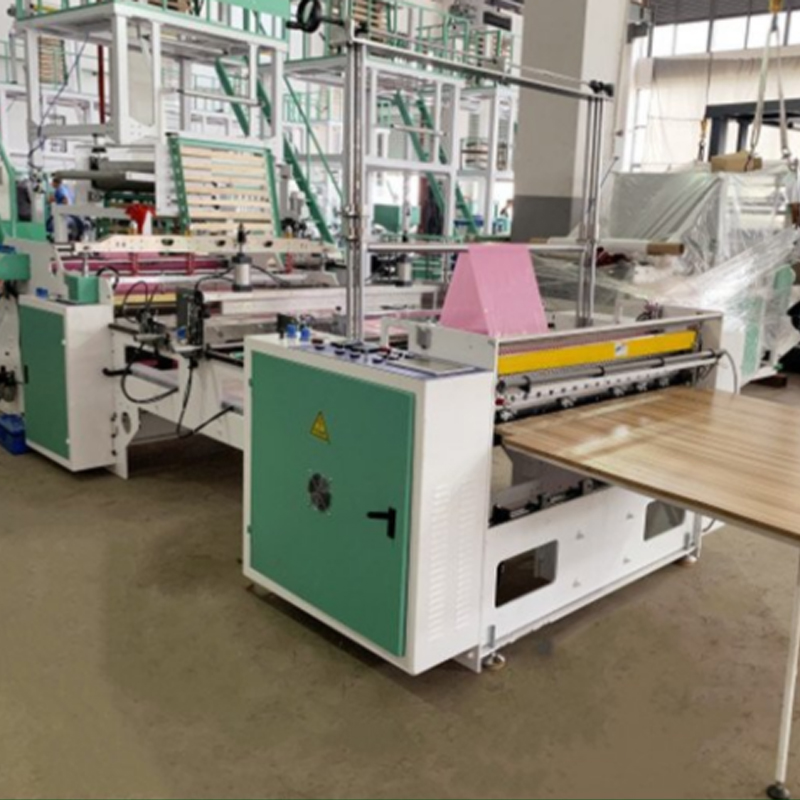

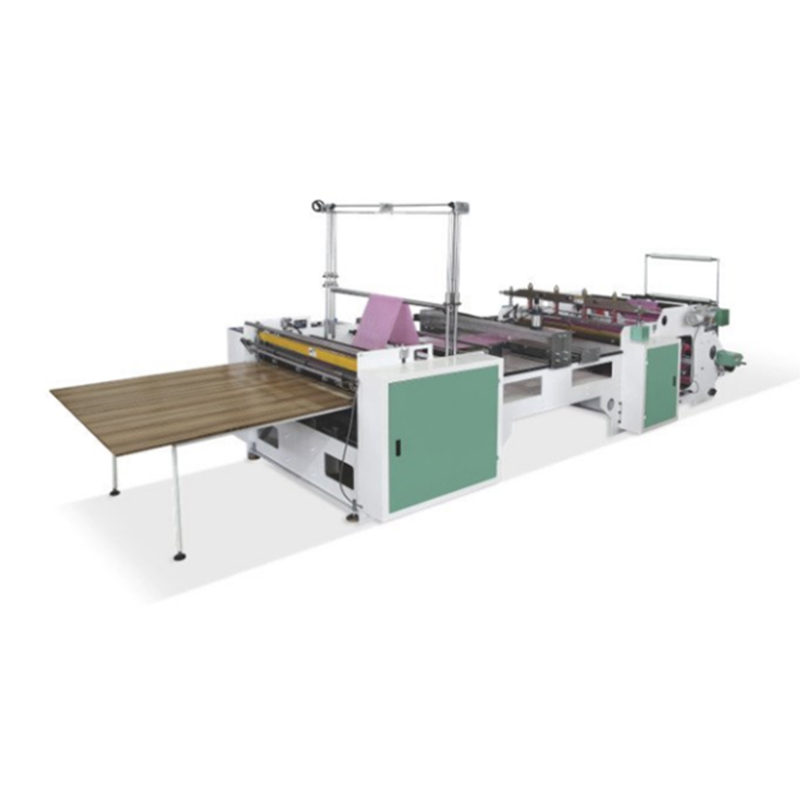

600 Type Double-Layer Heat Sealing And Cold Cutting Bag Making Machine

Application of this machine: suitable for producing HDPE/LDPE flat bag, vest bag.
Features of this machine:
1. Computer automatic control, automatic counting and counting alarm can be set, high efficiency, save manpower and time.
2. From film roll to finished bag, it is fully automatic and one-time completion;
3. Stepping motor fixed length, photoelectric tracking, accurate, smooth, feeding with photoelectric control;
4. Adopting heat sealing and cold cutting device, intelligent temperature control system to make the bag mouth sealing firmly and flat;
5. The main machine adopts frequency converter to control the speed.
6. It can be used with punching machine.

Contact Us Watch The Video 600 Type Double-Layer Heat Sealing And Cold Cutting Bag Making Machine
600 Type Double-Layer Heat Sealing And Cold Cutting Bag Making Machine
PREV：Model 800 Single Channel Heat Seal Cold Cut Bag Making Machine
NEXT：CZ500x2 Automatic High Speed Vest Bag Making Machine
600 Type Double-Layer Heat Sealing And Cold Cutting Bag Making Machine

  • Application

  • Product Specifications

    Bag-Making Machine Configuration

    Type number Type 600
    Maximum bag width 600mm
    Maximum bag length 2000mm
    Rate of production 10-120 PCS/min
    Cutting thickness 0.01 mm to 0.10 mm
    Overall dimension (L×W×H) 800 * 2500 * 1900
    Main motor Shanghai Lichao 1.1kw
    Frequency converter Dever 1.5kw
    Feed motor Wuhu Deli 400w
    Main feed 350C stepper motor
    Discharge shaft 2 pieces
    Electrical appliance Wenzhou Zhengtai
    computer CITIC
    Color marker photoelectric eye Dragon Tour
    Feed photoelectric eye Dragon Tour
    Temperature controller Yuyao YKC
    Scalding knife Brass calcined flat top vest with double scalding knife
    cutter 1100mm, Maanshan alloy steel
    Electrostatic box 16kv
    Electrostatic bar 650mm2 root
