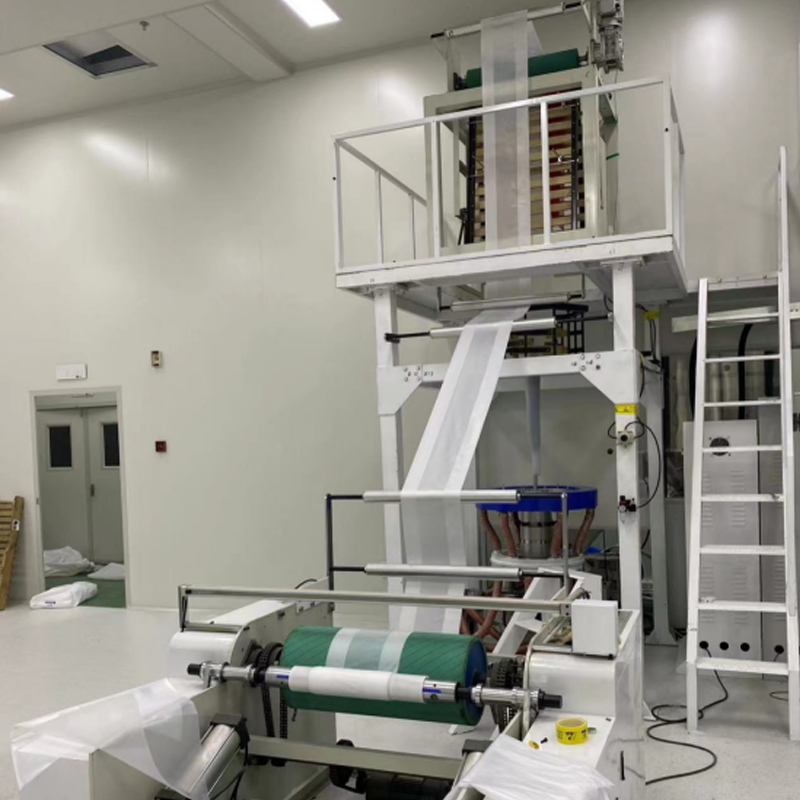

Model 600 High Speed Blown Film Machine

Contact Us Watch The Video Model 600 High Speed Blown Film Machine
Model 600 High Speed Blown Film Machine
PREV：700 Type Compact Low Pressure Blown Film Machine
NEXT：Model 600 Double Colour Strip Film Blower
Model 600 High Speed Blown Film Machine

  • Product Specifications

    High speed blown film machine 600 blown film machine
    1 Voltage AC /380V /3PHRASES/50HZ
    2 Film width  HDPE:-800MM
    3 Film thickness mm 0.01-0.25
    4 Raw material application HDPE+LLDPE
    HDPE
    5 Screw material Combined metal
    6 Cylinder material 38CRMOALA
    7 Screw diameter Φ50/30 (High speed screw) Alloy screw
    8 Screw speed 100r/min
    9 Reducer: national standard hardened gearbox; 146# 1 set 173# 1 set (low noise)
    Gear material: alloy steel；
    Gear main process: tooth surface high-frequency quenching, hardened tooth surface by gear grinding machine fine grinding；
    Gear box lubrication method: forced oil pump back ring lubrication；
    Gear box cooling method: forced water back to the circle cooling oil temperature    		 :A146..(Xiaoshan)
    10 Main motor: Shanghai
    Foshan goodwill strong frequency converter    		 15KW*1  Akeley (name)
    11 Length of traction leather shaft mm 600
    12 Film width 580
    13 Maximum output 40KG/HR
    14 Minimum Output 20KG/HR
    15 Body cooling 200W×1 sets, 2 sets
    16 Die head  Φ50MM 100 (high matching mechanism 200 OD MM) High and low pressure
    17 Double wind ring Diameter 700mm, labyrinth entrance
    18 Wind ring wind piece configuration Model 700 Dual Air Outlet (High Velocity Air Ring)
    19 Mould head High Matching Die Head
    20 Air duct Φ50×6 PCS
    21 Blower 1.5KW DELTA INVERTER
    22 Traction part
    Traction pinch roller    		 Pneumatic control
    23 Motor and control system Turbine reducer.
    24
    25 Herringbone plate adjustment Simple operation
    26 Winding machine Single winder
    27 Winding rollers Φ50(AIR SHAFT) 4 pcs.
    28 Temperature controller Double digital display type
    29
    30 Traction motor power
    AC motor, drive control    		 1.5 0.40 ratio speed
    31 Power of winding machine motor (kw) 1.5KW
    32 Maximum winding diameter mm 600
    33 Barrel heating ring Stainless steel heating ring
    34 Head flange Recessed
    35 Die Head Heater Stainless Steel Heater

  • Optional Equipment

    1. ABC Wear-Resistant Rotary Die Head

      ABC Wear-Resistant Rotary Die Head
    2. 1000 Type Automatic Double Air Outlet Wind Ring

      1000 Type Automatic Double Air Outlet Wind Ring
    3. 700 Type Low Pressure Port Air Ring

      700 Type Low Pressure Port Air Ring
    4. 1500 Type High Pressure Wind Ring

      1500 Type High Pressure Wind Ring
    5. ABA High Internal Pressure Die Head

      ABA High Internal Pressure Die Head
    6. Hydraulic Quick Screen Changer for Blown Film Machines

      Hydraulic Quick Screen Changer for Blown Film Machines
    7. Greenhouse Film, 800mm Die Head

      Greenhouse Film, 800mm Die Head
    8. Manual Quick Screen Changer for Blown Film Machines

      Manual Quick Screen Changer for Blown Film Machines
    9. Dual Pressure Blown Film Die Head

      Dual Pressure Blown Film Die Head
