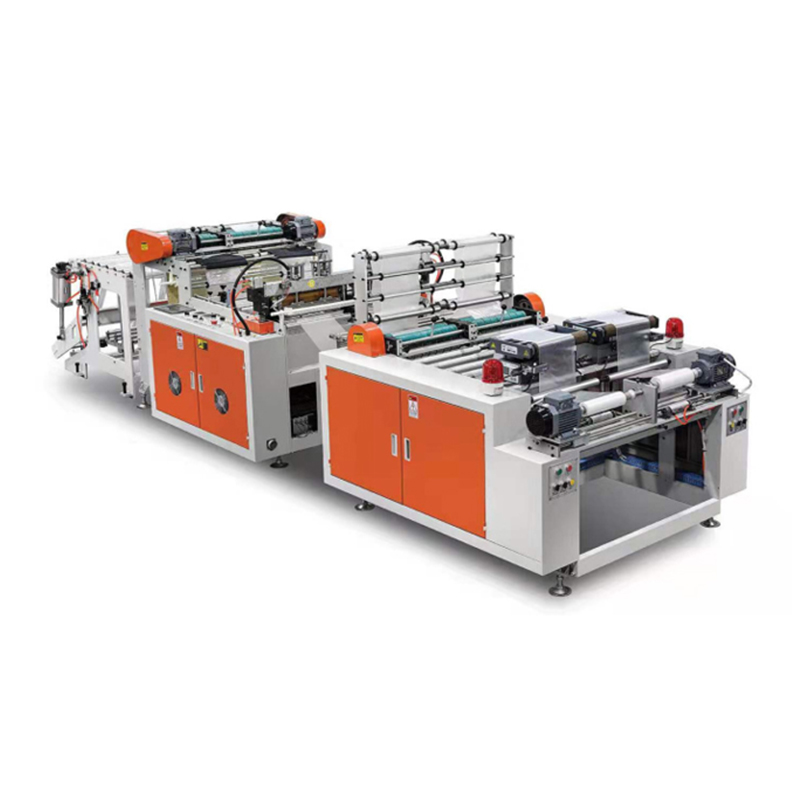

400*2 High-Speed Double-Channel Continuous Roll Bag Making Machine

Contact Us Watch The Video 400*2 High-Speed Double-Channel Continuous Roll Bag Making Machine
400*2 High-Speed Double-Channel Continuous Roll Bag Making Machine
PREV：Single-Channel Core Rolled Plastic Bag Making Machine For Plastic Bags For Supermarkets With Flat Mouth And Fresh Waste Bag Making Machine With Rolled Machine
NEXT：Folding Rubbish Bag Making Machine
400*2 High-Speed Double-Channel Continuous Roll Bag Making Machine

  • Application

  • Product Specifications

    Performance and features:
    1. Computer automatic control, automatic counting and counting alarm can be set, high efficiency, save manpower and time.
    2. From film roll to finished bag, it is fully automatic one-time completion;
    3. Domestic servo motor fixed length, photoelectric tracking, accurate, smooth, feeding with photoelectric control;
    4. Adopting hot cutting device, intelligent temperature control system to make the bag sealing firmly and flat;
    5. The main machine adopts frequency converter to control the speed.
    6. Winding is controlled by PLC;
    7. Unwinding is controlled by frequency converter;

    Model of machine OJG 400*2
    Speed of bag making Single lane 30-190 pcs/min
    30-190 bags/min each lines
    Max speed of film 120m/min
    Length of bag making 100-1200mm
    Width of bag making 60-300mm
    Thickness of bag making 0.005-0.015mm
    Bag making methods Star sealing garbage bag
    Control system of machine Kelai PLC
    Material feeding 4pcs of 370w AC motor with inverter control
    Bag length control 2pcs of 2kw servo motor
    Temperature control zones Solid relay heating
    Temperature control precision ±2°C
    Heating power 2kw
    Traction part 2pcs of 370w AC motor with inverter control
    Power of winding motor 2pcs of 370w AC motor with inverter control
    Turntable control Reducer motor control
    HMI Touch screen control
    Total power of machine 12kw
    Dimension of machine 6200*1800*1800mm
