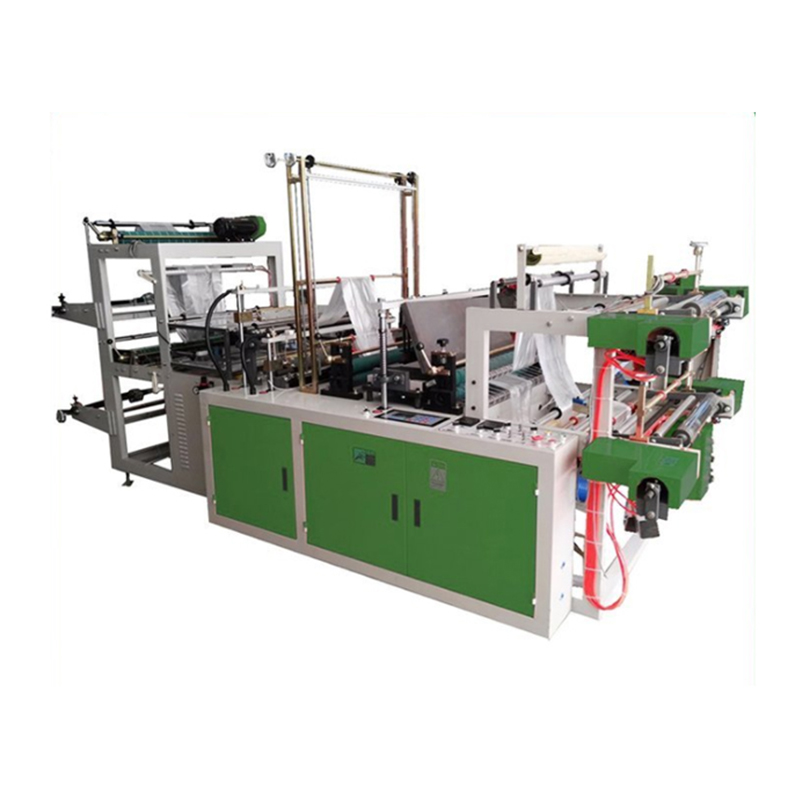

Single-Channel Core Rolled Plastic Bag Making Machine For Plastic Bags For Supermarkets With Flat Mouth And Fresh Waste Bag Making Machine With Rolled Machine

Contact Us Watch The Video Single-Channel Core Rolled Plastic Bag Making Machine For Plastic Bags For Supermarkets With Flat Mouth And Fresh Waste Bag Making Machine With Rolled Machine
Single-Channel Core Rolled Plastic Bag Making Machine For Plastic Bags For Supermarkets With Flat Mouth And Fresh Waste Bag Making Machine With Rolled Machine
PREV：500 Glove Machine Bag Making Machine
NEXT：400*2 High-Speed Double-Channel Continuous Roll Bag Making Machine
Single-Channel Core Rolled Plastic Bag Making Machine For Plastic Bags For Supermarkets With Flat Mouth And Fresh Waste Bag Making Machine With Rolled Machine

  • Application

  • Product Specifications

    Performance and features:
    1. Computer automatic control, automatic counting and counting alarm can be set, high efficiency, save manpower and time.
    2. From film roll to finished bag, it is fully automatic one-time completion;
    3. Domestic servo motor fixed length, photoelectric tracking, accurate, smooth, feeding with photoelectric control;
    4. Adopting hot cutting device, intelligent temperature control system to make the bag sealing firmly and flat;
    5. The main machine adopts frequency converter to control the speed.
    6. Winding is controlled by PLC;
    7. Unwinding is controlled by frequency converter.

    Model of machine OJF 500
    Speed of bag making 30-190 bags/min
    Max speed of film         120m/min
    Length of bag making 100-1200mm
    Width of bag making 60-300mm
    Thickness of bag making 0.005-0.015mm
    Bag making methods Shopping bag with core
    Control system of machine Wuxi Kelai 2016
    Material feeding 1pcs of 370w AC motor with inverter control
    Bag length control 1pcs of 3kw servo motor
    Temperature control zones Solid relay heating
    Main motor power 1.5kw with inverter control
    Heating power 2kw
    Traction part 1pcs of 370w AC motor with inverter control
    Power of winding motor 1pcs of 370w AC motor with inverter control
    Low voltage electrical parts CHINT
    Temperature controller YATAI
    Total power of machine 8kw
    Dimension of machine 6000*1300*1800mm
