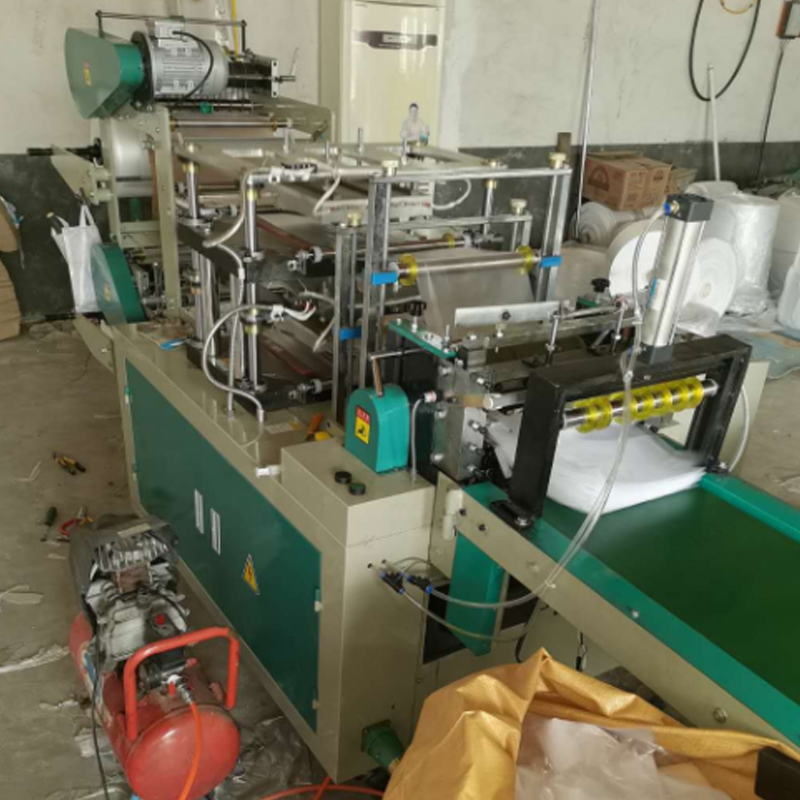

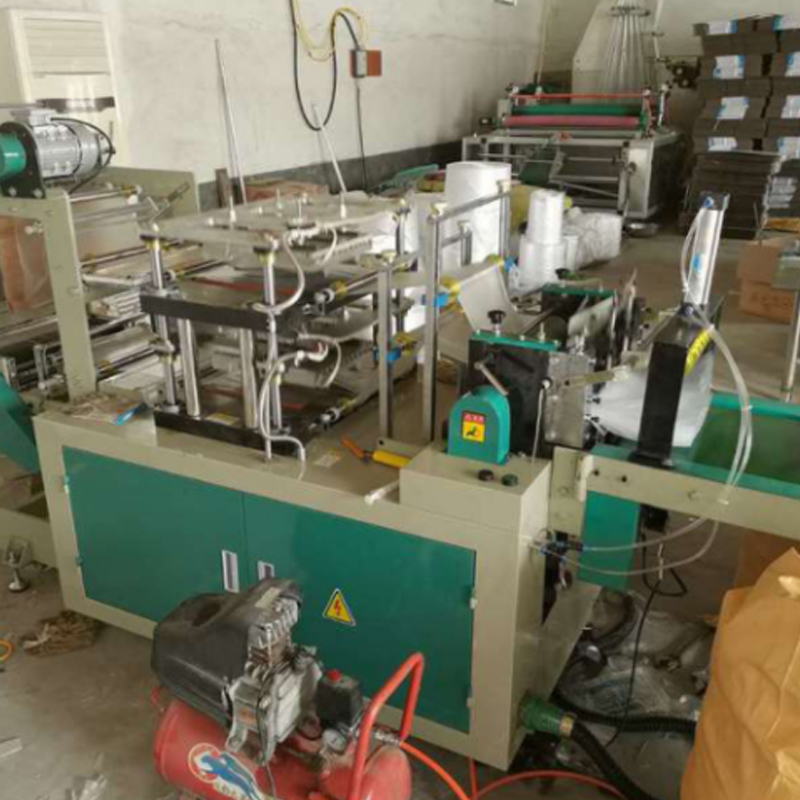

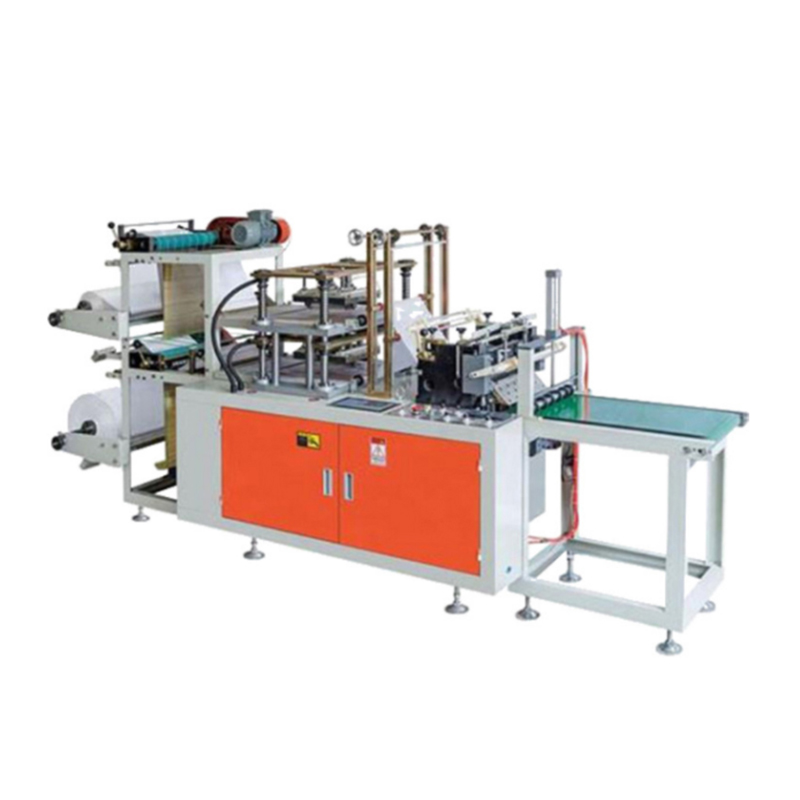

500 Glove Machine Bag Making Machine

Application of this machine: suitable for producing HDPE/LDPE flat bag, vest bag.
Features of this machine:
1. Computer automatic control, automatic counting and counting alarm can be set, high efficiency, save manpower and time.
2. From film roll to finished bag, it is fully automatic and one-time completion;
3. Stepping motor fixed length, photoelectric tracking, accurate, smooth, feeding with photoelectric control;
4. Adopting heat sealing and cold cutting device, intelligent temperature control system to make the bag mouth sealing firmly and flat;
5. The main machine adopts frequency converter to control the speed.
6. It can be used with punching machine.

Contact Us Watch The Video 500 Glove Machine Bag Making Machine
500 Glove Machine Bag Making Machine
PREV：No previous article
NEXT：Single-Channel Core Rolled Plastic Bag Making Machine For Plastic Bags For Supermarkets With Flat Mouth And Fresh Waste Bag Making Machine With Rolled Machine
500 Glove Machine Bag Making Machine

  • Application

  • Product Specifications

    Model Model 500 Electrical Wenzhou Chint
    Maximum bag width 500mm Computer Zhongxin
    Maximum bag length 2000mm Colour coded photoelectric cell Longyou
    Production speed 10-120pcs/min Feeding photoelectric eye Longyou
    Cutting thickness 0.01mm-0.10mm Temperature Controller Yuyao YKC
    Overall Dimension (L×W×H) 800×2500×1900 Ironing knife Brass Calcined Flat Vest Dual Purpose Ironing Knife
    Main motor Shanghai Lichao 1.1kw Cutting knife 1100mm, Maanshan alloy steel
    Inverter Dever 1.5kw Static box 16kv
    Feeding motor Wuhu Deli 400w Static electricity stick 650mm2pcs
    Main feed 350C Stepping Motor
    Unwinding shaft 2pcs

    Accessories and tools: 50 springs, one grease gun, one inverter manual, one computer manual, one open-end spanner, one hexagonal socket, one Phillips screwdriver, one screwdriver, and so on.
