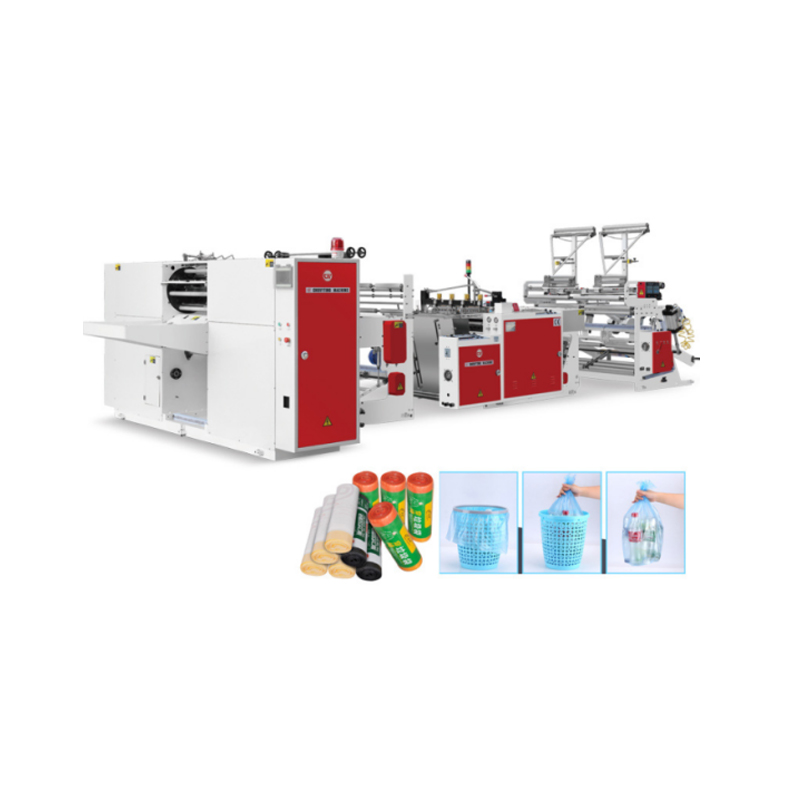

Model 800 Drawstring Bag Making Machine (Automatic Reel Change)

Use of the machine:
This machine is the ideal equipment to produce all kinds of plastic flexible packaging, such as rubbish bags with drawstring and rubbish bags with flat mouth. It is suitable for making LDPE, HDPE material and so on continuous rolls of rubbish bags with string (drawstring), flat mouth continuous rolled rubbish bags and so on.
Performance and characteristics.
1. The machine is manufactured by our company with advanced technology at home and abroad.
2. It adopts computer control and servo motor structure.
3. With photoelectric automatic tracking, white bag, colour bag conversion function, microcomputer fixed length, automatic counting, to the number of alarm, automatic temperature control.
4. With automatic breaking, punching (through) holes, semi-garden holes, wearing rope and tape, side sealing, bottom sealing, point break, folding, continuous roll and sub-roll mechanical devices.
5. Using copper knife point tooth sealing structure, sealing and point break synchronous, sealing bottom firmly, beautiful.
6. This machine can process rubbish bags with rolls, flat bags with rolls and flat bags.
7. The whole machine adopts one production line with high automation degree, which is the ideal equipment for making rubbish bags, and it is the advanced equipment to replace the imported similar products.

Contact Us Watch The Video Model 800 Drawstring Bag Making Machine (Automatic Reel Change)
Model 800 Drawstring Bag Making Machine (Automatic Reel Change)
PREV：CZ450x2 High Speed Vest Bag Making Machine Hot Cutting Bag Making Machine
NEXT：No next article
Model 800 Drawstring Bag Making Machine (Automatic Reel Change)

  • Application

  • Product Specifications

    Technical Parameters:

    Maximum width of finished bag (left and right width of bag) 600mm
    Maximum depth of finished bag (mouth to bottom of bag) 650mm
    Effective cutting thickness: 0.01mm-0.03mm
    Mechanical speed: 50—100pcs/min
    Cutting accuracy: ±0.5mm
    Power of the whole machine: 20KW
    Weight of the whole machine: 3000KG
    Outer dimensions: 10400mm×1700mm×1800mm

    Detailed Configuration:

    Serial number  Name of product Quantity Place of Origin
    1 Mainframe 1pc Wuhu Deli
    2 Feeder AC motor 4 pcs Wuhu Deli
    3 Electrostatic generator 1 set Wuxi
    4 Synchronous motor (Unwinding motor) 1pc Wuxi Yintong
    5 Touch screen computer 1pc Taiwan Wyland
    6 Touch screen computer controller PLC 1 set CITIC
    7 Servo motor 2 sets Elise
    8 Drive Controller 2 pcs Elise
    9 Frequency converter 5pcs Changsha Best
    10 Speed Controller 1 set Domestic
    11 Proximity Switch 1 Domestic
    12 Photoelectric eye colour coded tracker 1 set Longyou
    13 Photoelectric switch 2 sets Domestic
    14 Half Round Hole Punch 1 set Made in our factory
    15 Round hole punch 1 set Made in Shenzhen
    16 2 hot knives (stringing position)
    Spot break magnetic ironing knife (segmented)    		 4 Handles Made in China
    17 Temperature Control Meter 5 pcs Wenzhou Huapu
    18 Solid state relay 5 pcs Made in China
    19 PE cylinder material breaking device for doing high pressure material breaking 1 set Made in this factory
    20 Rope threading device 1 set Made in China
    21 Fully automatic reel change 1 set Made in China
    22 Circuit breaker 10 pcs Zhengtai
    23 Rotary switch 17 sets Zhengtai
    24 Deskewing machine (with magnetic powder) 1 set Made in our factory
    25 Solenoid valve 1 set Guangdong
