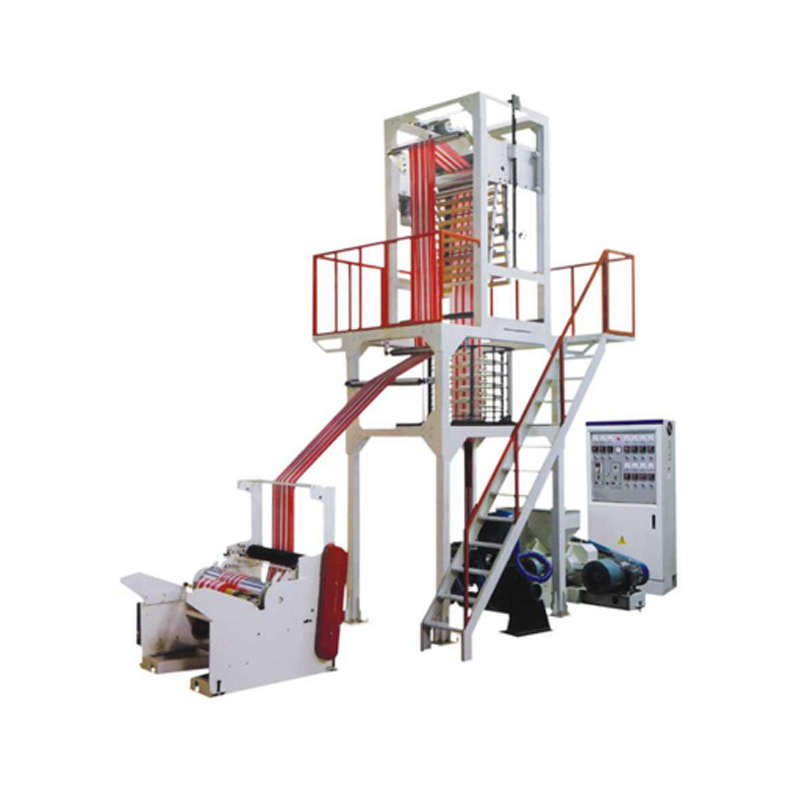

| Configuration single colour strip film blowing machine | ||
| 1 | Voltage | AC /380V /3PHRASES/50HZ |
| 2 | Film width | HDPE:-1000MM |
| 3 | Film thickness mm | 0.01-0.25 |
| 4 | Raw material application | HDPE+LLDPE, HDPE |
| 5 | Screw material | Combined metal |
| 6 | Cylinder material | 38CRMOALA |
| 7 | Screw diameter | A Φ50/30 B Φ50/30 |
| 8 | Screw speed | 100r/min |
| 9 | Reducer: national standard hardened gearbox; 146# 1 set 173# 1 set (low noise) Gear material: alloy steel； Gear main process: tooth surface high-frequency quenching, hardened tooth surface by gear grinding machine fine grinding； Gear box lubrication method: forced oil pump back ring lubrication； Gear box cooling method: forced water back to the circle cooling oil temperature |
B :A133.B :133 (Xiaoshan) |
| 10 | Main motor: Shanghai Foshan goodwill strong frequency converter |
11KW*2 sets |
| 11 | Length of traction leather shaft mm | 700MM |
| 12 | Film width | 600MM |
| 13 | Maximum output | 70KG/HR |
| 14 | Minimum Output | 50KG/HR |
| 15 | Body cooling | 200W×2 sets, 2 sets |

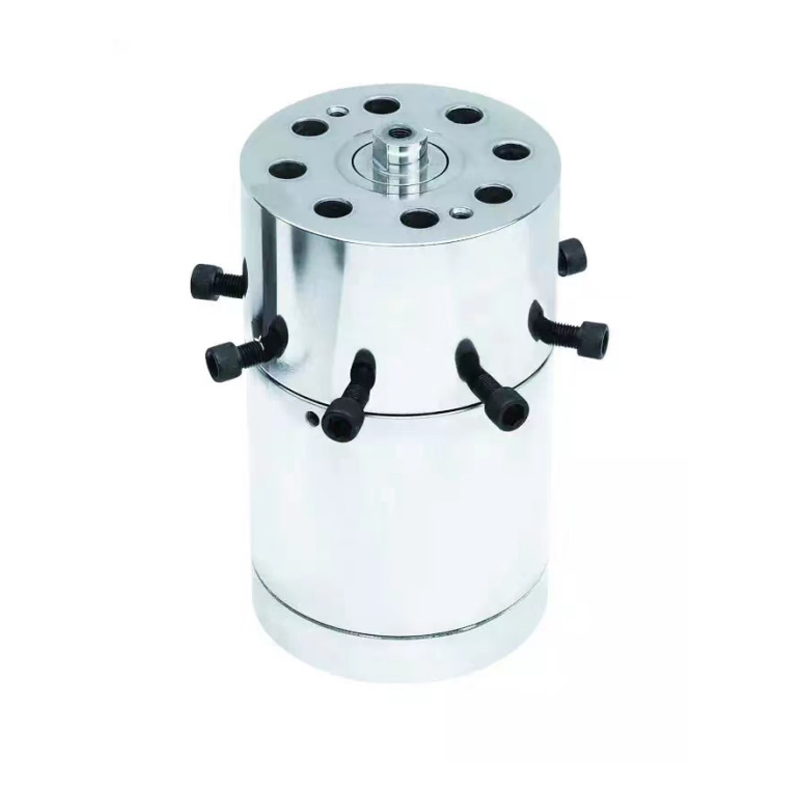

| 16 | Die head | 50MM |

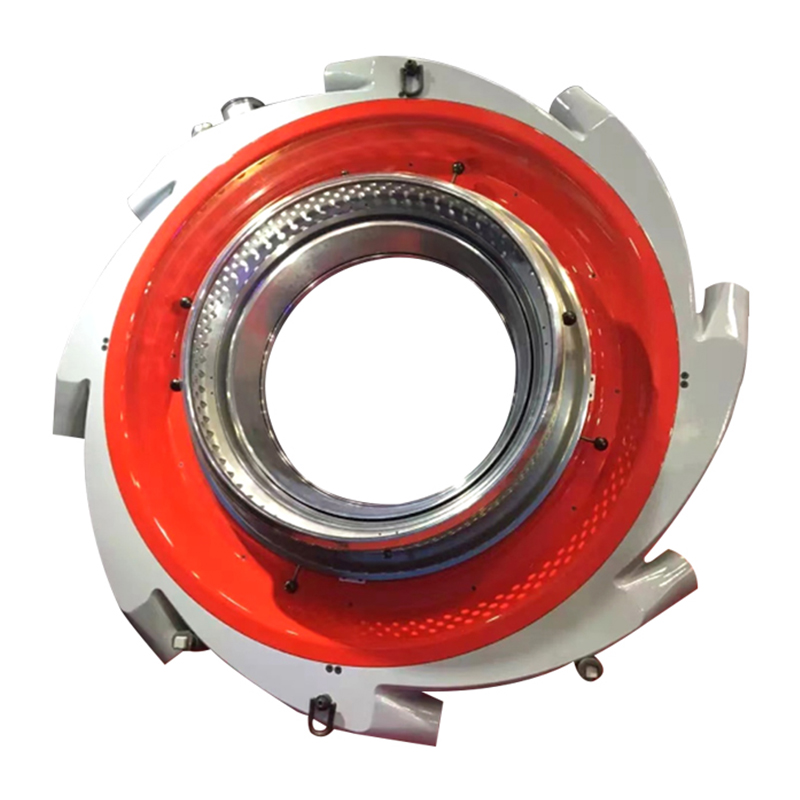

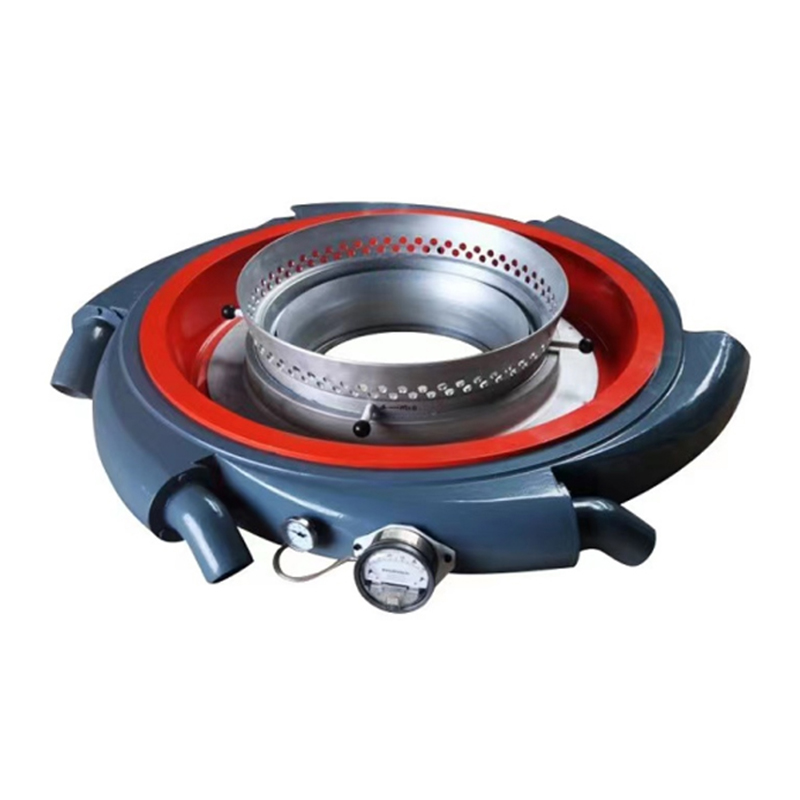

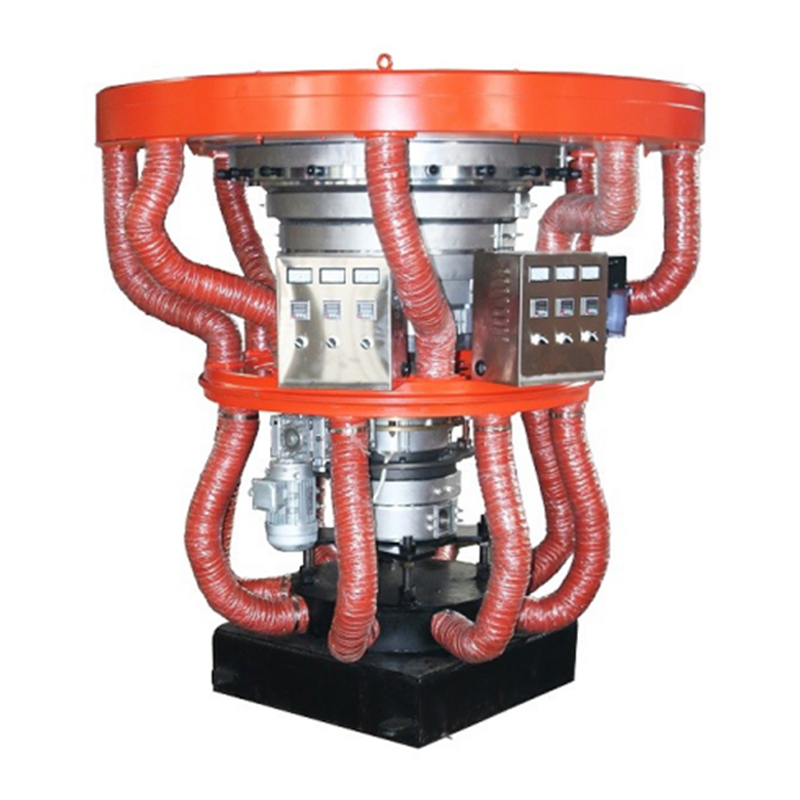

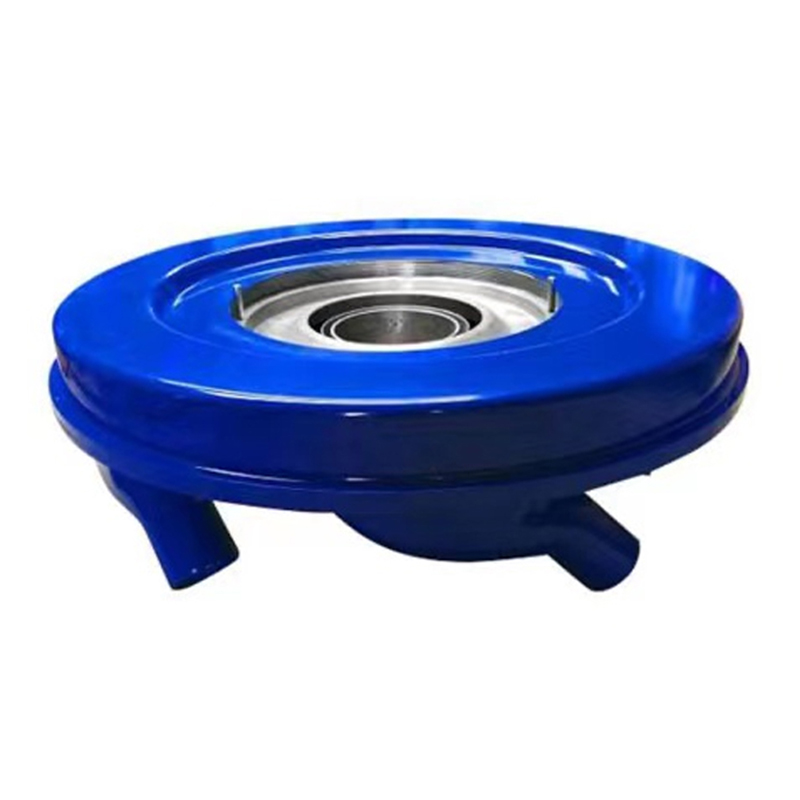

| 17 | Double wind ring | Diameter 800mm, labyrinth inlet |
| 18 | Wind ring wind piece configuration | Model 800 Double air inlet |

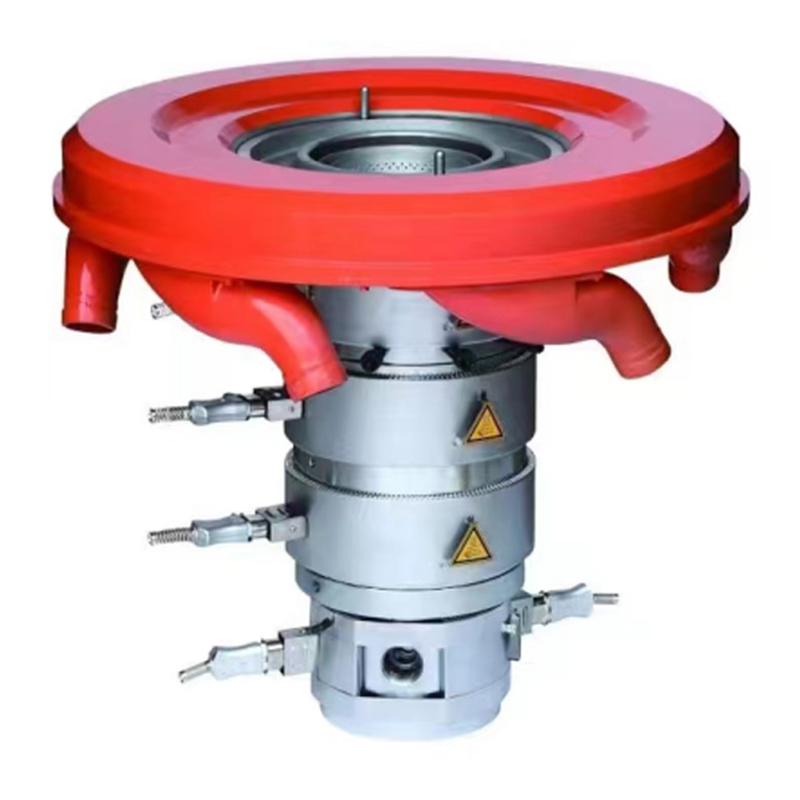

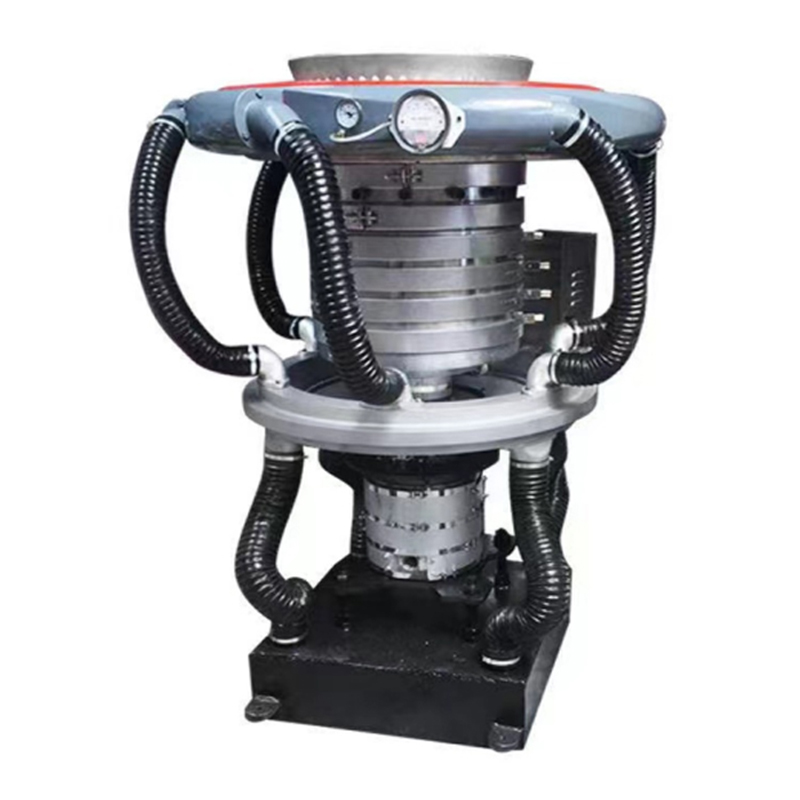

| 19 | Mould head | Highly equipped with colour stripe mould head |

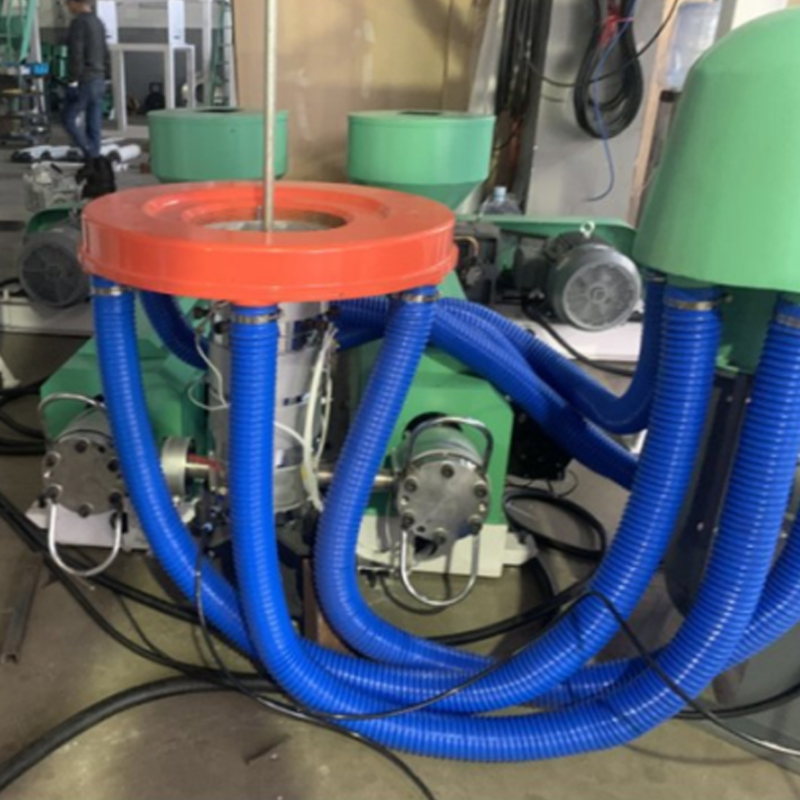

| 20 | Air duct | Φ70×6 PCS |
| 21 | Blower | 3KW DELTA INVERTER |
| 22 | Traction part Traction pinch roller |
Pneumatic control |
| 23 | Motor and control system | Turbine reducer. |
| 24 | Meter weight Device | Hebei |
| 25 | Herringbone plate adjustment | Simple operation |
| 26 | Winding machine | Single winder |
| 27 | Winding rollers | Φ50(AIR SHAFT) 4 pcs. |
| 28 | Temperature controller | Double digital display type |
| 29 | Suction machine | 2 sets |
| 30 | Traction motor power AC motor, drive control |
1.5 0.40 ratio speed |
| 31 | Power of winding machine motor (kw) | 1.5KW |
| 32 | Maximum winding diameter mm | 600 |
| 33 | Barrel heating ring | Stainless steel heating ring |
| 34 | Head flange | Recessed |
| 35 | Die Head Heater | Stainless Steel Heater |
| 36 | Air cylinder | |

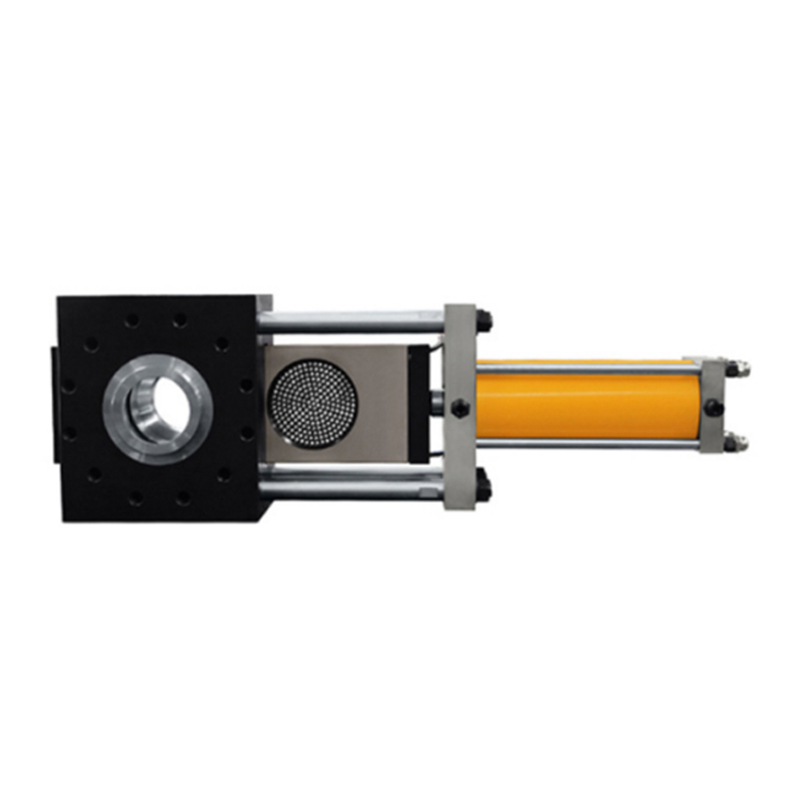

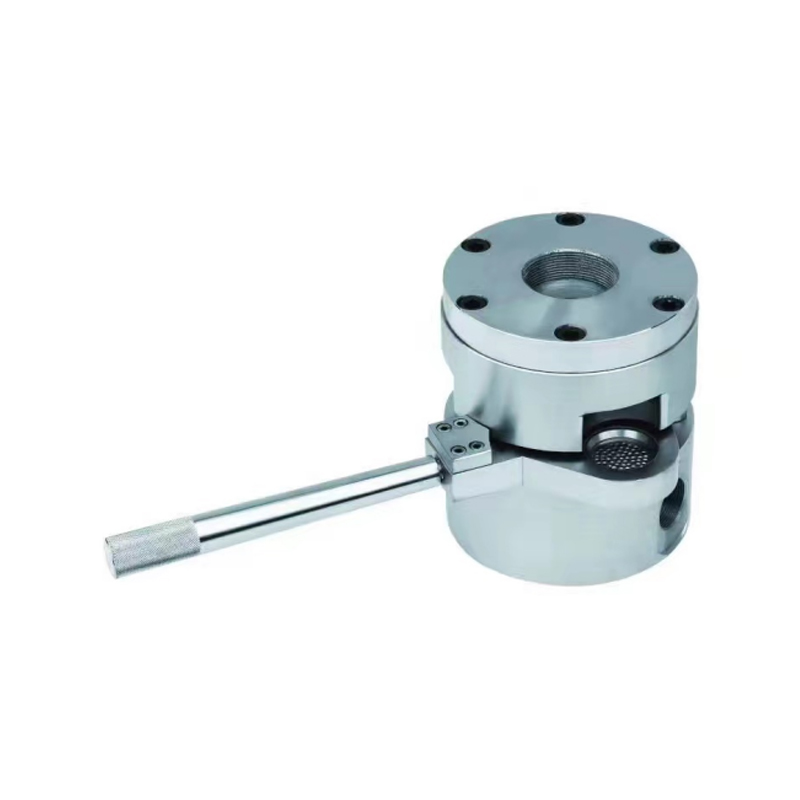

| 37 | Screen Changer | Manual screen changer |
