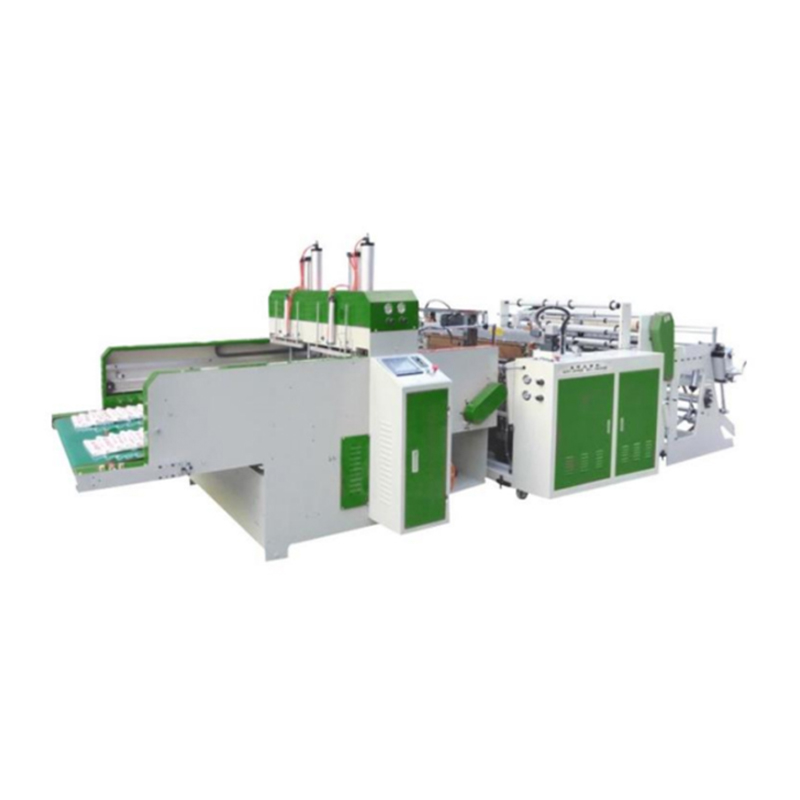

CZ450x2 High Speed Vest Bag Making Machine Hot Cutting Bag Making Machine

CZ450x2 High Speed Vest Bag Making Machine Hot Cutting Bag Making Machine is an efficient and intelligent hot-cutting bag making equipment, which is specially used to produce various types of vest bags (vest bags), such as supermarket shopping bags, clothing bags, gift bags, etc. The equipment adopts a double-station synchronous operation design, which greatly improves production efficiency and is suitable for the mass production needs of medium and large plastic packaging companies.

Contact Us
CZ450x2 High Speed Vest Bag Making Machine Hot Cutting Bag Making Machine
PREV：CZ500x2 Automatic High Speed Vest Bag Making Machine
NEXT：Model 800 Drawstring Bag Making Machine (Automatic Reel Change)
CZ450x2 High Speed Vest Bag Making Machine Hot Cutting Bag Making Machine

  • Application

  • Product Specifications

    Technical Parameters:

    Model  500×2
    Maximum bag length  280-650mm×2
    Maximum bag width  180-430mm×2
    Bag-making speed  100-380pcs/min×2
    Bag thickness  0.01-0.05mm
    Total power  16kw
    Machine weight  2700kg
    Overall dimension  L6800×W1700×H1800mm
    Air pressure  10HP

    Configuration list of the machine's main accessories:

    Accessory Name Origin/Brand
    Mainframe Iron plate
    Feeding control system Analogue control
    Cutting knife heating method Current heating
    Punching machine frame Steel plate
    Discharge method Toggle (independent discharge)
    Discharge brake                                   Magnetic powder 5kg
    Main motor           Servo 1.8kw
    Discharge motor Dedong/0.75KW
    Servo motor Huichuan 4.8kw
    Computer Controller Wuxi/Xuncheng
    Hall switch Shanghai SDD
    Punching machine computer Touch Screen
    Punching Machine Mainframe Drive Control
    Bearing Japan/NSK or Domestic/Renbon
    Unwind inverter                                 Huichuan
    Solid state regulator Taiwan/Yang Ming
    Blow-by solenoid valve Japan SMC
    Punching machine solenoid valve Taiwan/Goldware
    Temperature controller Shanghai/Yatai
    Push button switch Schneider
    Booster Cylinder 5 tonnes
    Circuit Breaker Zhejiang/Zhengtai
    Discharge electric eye Hong Kong HuGong
    Heating Tube Imported/2000W
    Hot cutting blade Songyue
    Tracking electric eye Panasonic
    Plugging electric eye Panasonic
    Materialless protection electric eye Panasonic
    Blower                                        Shenzhen
    Random accessories complete
