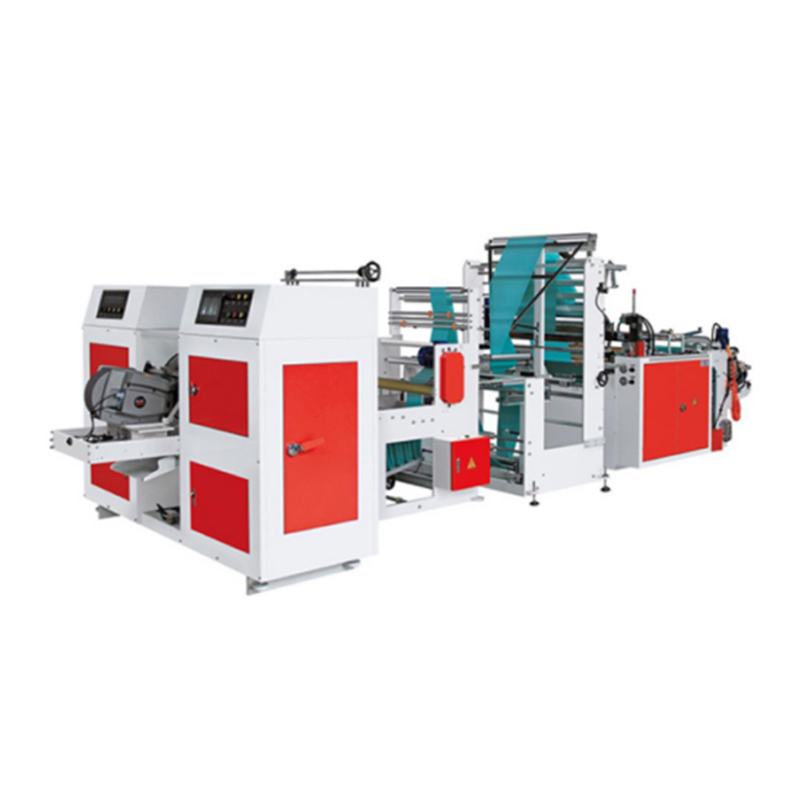

Model 800 Drawstring Bag Making Machine (Automatic Reel Change)
Use of the machine:This machine is the ideal equipment to produce all kinds of plastic flexible packaging, such as rubbish bags with drawstr...
| Machine type | CW-1000PG | CW-1000PG+OR | CW-1000PR+C2 |
| Bag Making Form | String-piercing and point-breaking continuous roll rubbish bag making machine | Overlapping rubbish bags with drawstring and continuous roll | Core or coreless flat rolled bags, octagonal bags, tablecloths, vegetable bags, C-shaped bags |
| Seal form | Double line sealing+dot break | Double line seal + point break | Bottom seal or double line seal |
| Discharge width | 1000MM | 1000MM | 900MM (single line) 300MM×2 (double line) |
| Bag length | 500-900MM | 500-900MM | 250-10000MM |
| Bag width | 300-1200MM | 300-1100MM | 300-1100MM |
| Scheduled line speed | 70M/MIN | 60M/MIN | Core-80M/MIN Coreless-100M/MIN |
| Winding width | 300MM | 300MM | Cored-600MM (single wire) 300MM×2 (double wire) Coreless a ¢600MM (single wire) 300MM×2 (double wire) |
| Maximum winding diameter | 130MM | ¢150MM | Cored one ¢160MM Coreless one 160MM |
| Number of roll changes | 7 rolls/MIN (max) | 8 rolls/MIN (max) | Core 4 rolls/MIN Coreless 6 rolls/MIN |
| Film thickness | 0.02-0.06Mм | 0.02-0.06MM | HDPE 0.015-0.04MM (single layer thickness) LDPE 0.02-0.08MM (single layer thickness) |
| Total power | Approx. 18KW | Approx. 26KW | About 18.8KW |
| Machine size | 15000X2400X2500Mм | 15500×2800×3000MM | 6600×3300X1900MM |
| Machine weight | 3900KG | 4200KG | 2900KG |
