| Configuration Single Type AB Extrusion High Configuration 1600 Model | |
| Voltage | Ac /380v /3phrases/50hz |
| Film Width | HDPE:-1100MM |
| Film thickness mm | 0.01-0.10 |
| Material | HDPE+LLDPE. |
| HDPE | |
| Screw material | Combined Metal |
| Cylinder material | 38CRMOALA |
| Screw diameter | AΦ60Φ extension B60Φ Alloy body (Zhoushan) |
| Screw speed | 100r/min 1 |
| Reducer: national standard hardened gearbox; 173#*2 2 sets (low noise) | :A:173 B:173 |
| Gear material: alloy steel； | (Xiaoshan) |
| Gear main process: tooth surface high-frequency quenching, hardened tooth surface by gear grinding machine fine grinding； | |
| Gearbox lubrication method: forced oil pump back ring lubrication； | |
| Gear box cooling method: forced water return ring cooling oil temperature | |
| Main motor: | AΦ 18.5 BΦ18.5KW |
| Length of traction skin shaft mm | 1500 |
| Membrane width | 1500MM |
| 1.Barrel film (width 4) | |
| Maximum output | 160KG/HR |
| Minimum output | 120KG/HR |
| Body cooling | 200W×3 sets, (200W*3 sets) |
| Die head Rotating mechanism | Φ250MM rotary |
| Wind ring | Double lip, diameter 1000mm, labyrinth entrance |
| Configuration of wind ring and wind sheet | 1000 type wind ring |
| Rotary mould head structure | High configuration |
| Ducting | Φ70×6 PCS high temperature resistant tube |
| Blower | 5.5KW DELTA INVERTER Frequency control |
| Traction section | Pneumatic control |
| Traction pinch rollers | |
| Motor and control system | Turbine reducer |
| Meter weight | Device: Handwheel operation |
| Herringbone board adjustment | Handwheel operation |
| Winding machine | Double Breaking and Double Receiving |
| Winding rollers | Φ50(AIR SHAFT) 4 pcs. |
| Thermostat | Dual digital display type |
| Suction machine | No |
| Traction motor power | 1.5KW |
| AC motor, drive control | |
| Winding machine motor power (kw) | 2.2 |
| Maximum winding diameter mm | 500MM |
| Barrel heating ring | Stainless steel heating ring |
| Machine head flange | Embedded |
| Die head heater | Ceramic heater |
| Traction cylinder | Pneumatic |
| Winder unit for edge-breaking waste | 2 sets |
| Heated breaking knives | One set |
Core Functions

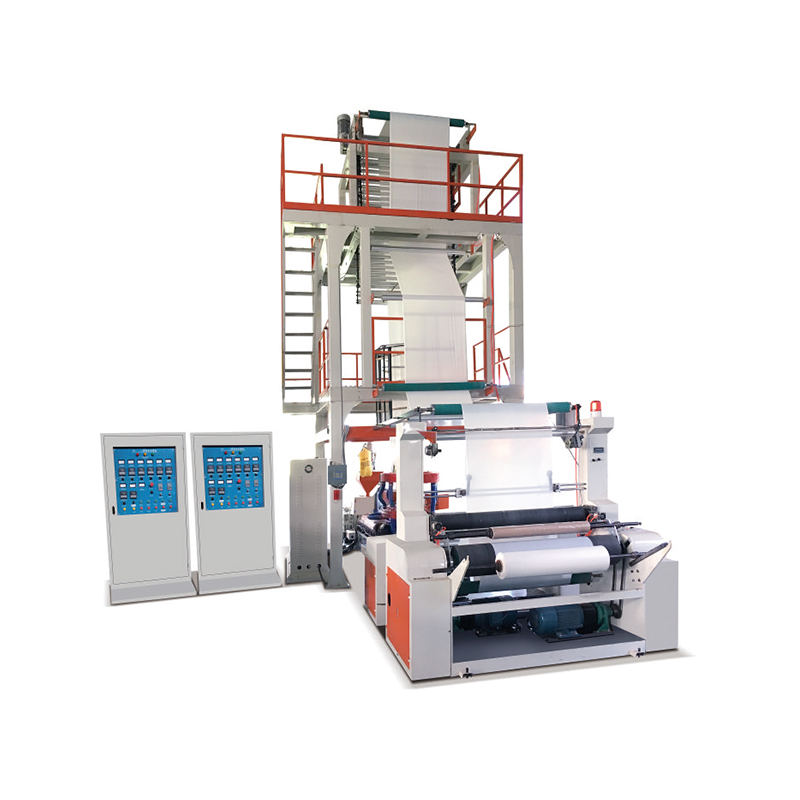

The ABA three-layer extrusion setup is the defining feature of this 1200 Type ABA Three-Layer Film Extrusion Machine — two φ60mm screws feed the outer A layers while a separate extrusion stage supplies the B core layer, letting buyers combine different resins in one film without a separate lamination step afterward.
A Φ250mm rotating die head spreads out thickness variation as the film is blown, which matters directly for buyers who need consistent gauge across a wide roll rather than thicker or thinner sections at the edges.
Output runs between 120kg/hr and 160kg/hr, giving the 1200 Type ABA Three-Layer Film Extrusion Machine enough throughput for ongoing production runs without stepping up to larger, wider-format equipment.
A double-lip wind ring (1000mm diameter) with labyrinth entrance manages cooling airflow, while a 5.5kw Delta inverter blower gives frequency-controlled airflow adjustment during production.
The winding side uses a double-breaking, double-receiving setup with four air-shaft winding rollers, letting the line manage roll changes and edge-trim handling as part of continuous operation, supported by two dedicated edge-trim winding units and a heated breaking knife.
Specific Applications
1. Producing HDPE and HDPE+LLDPE packaging film with a layered cost/performance structure
2. Manufacturing film for converters who need outer-layer strength without paying for premium resin throughout
3. Supplying film rolls to downstream bag-making operations needing consistent multi-layer film
4. Producing film where thickness consistency across the width matters for printing or lamination later in the process
Solving Common Buyer Pain Points
Converters running single-layer extrusion lines are stuck using one resin throughout the entire film, which means paying premium prices for material properties they only actually need on the surface. The ABA three-layer structure on this machine solves that by letting buyers separate the outer performance layers from the cost-driven middle layer.
Uneven film thickness across a wide roll is a common quality issue on lower-configuration extrusion lines. The rotating die head on the 1200 Type ABA Three-Layer Film Extrusion Machine is built specifically to distribute thickness variation evenly rather than concentrating it at the edges of the film.
Frequent stops for roll changes and edge-trim handling cut into total output on a production shift. The double-breaking, double-receiving winding setup and dedicated edge-trim winding units on this 1200 Type ABA Three-Layer Film Extrusion Machine are designed to keep those tasks from interrupting the main production run.
FAQ
Q1: How does the ABA layer structure benefit buyers?
It allows a cost-efficient resin in the middle B layer while keeping stronger material on the outer A layers, lowering average material cost without sacrificing surface performance.
Q2: Does the die head help with film consistency?
Yes, the rotating die head is built to spread out thickness variation across the film width during production.
Q3: Is roll changing automated?
The winding side uses a double-breaking, double-receiving setup with air-shaft rollers to manage roll handling during continuous runs.
