| Hard tooth face gear box (reduction box) | Gb Model 133*1 Model 133*1 |
| Barrel screw | φ50 alloy screw *1φ50 alloy screw *1 |
| Screw material | 38CrMoAl |
| Length-diameter ratio | 32:01:00 |
| Screw speed (r/min) | 0-85. |
| Minimum film width (mm) | 280 |
| Maximum width of film (mm) | 200-600. |
| Minimum film thickness (mm) | Single side 0.01 |
| Maximum film thickness (mm) | Single side 0.10 |
| Barrel cooling fan | 240W*4 |
| Cylinder heating ring | Stainless steel heating ring |
| Main motor of extruder | 11Kw*1* 11KW*1 Frequency conversion speed control |
| Main engine frequency converter | 11Kw*1 11WK*1 |
| Temperature controller | |
| Head flange | embedded |
| Three-way heating ring | Ceramic heating ring |
| Hopper charging mode | manual |
| Main engine housing | integral |
| Paint color | The main model is made of off-white, and the railings are matched with turquoise |
| Frame square steel | 10 # |
| yield | 20-40 kg/h |
| Total height of auxiliary engine | The upper and lower layers of 4800mm are broken |
| Traction press roller adjustment mode | Manual adjustment |
| Traction frame construction | Bolted type |
| Traction roll length (mm) | The length of the roll surface is 900mm |
| Traction motor | 1.5Kw frequency conversion speed control |
| Traction frequency converter | 1.5 Kw |
| Traction speed (m/min) | 0-80 |

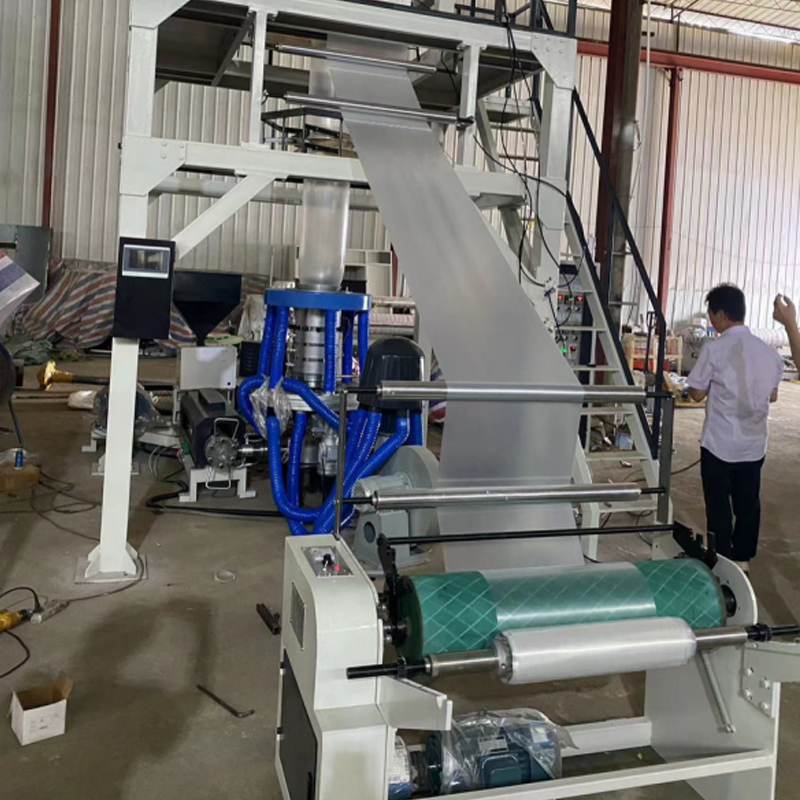

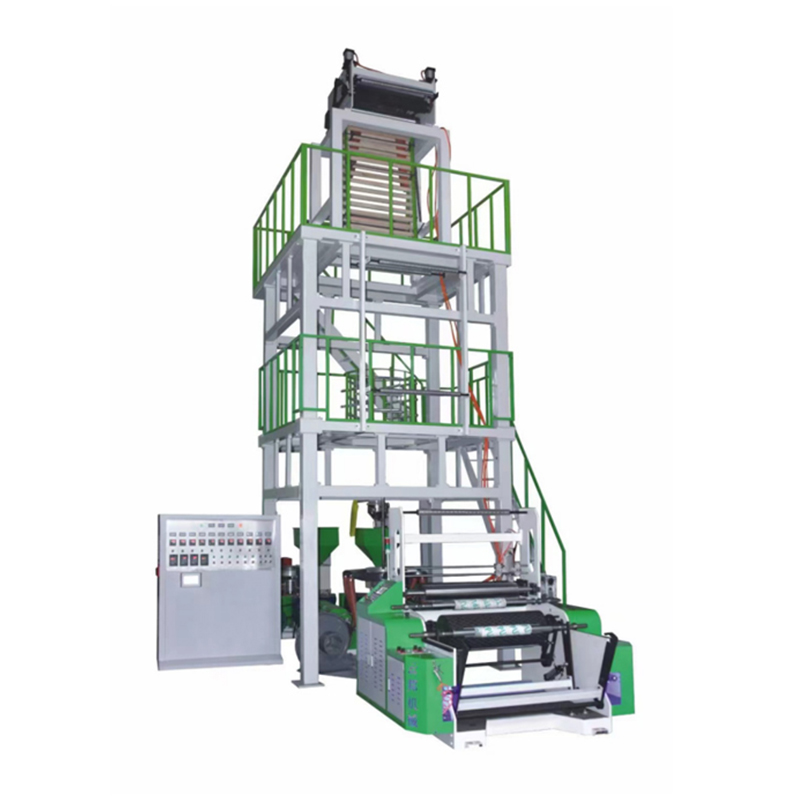

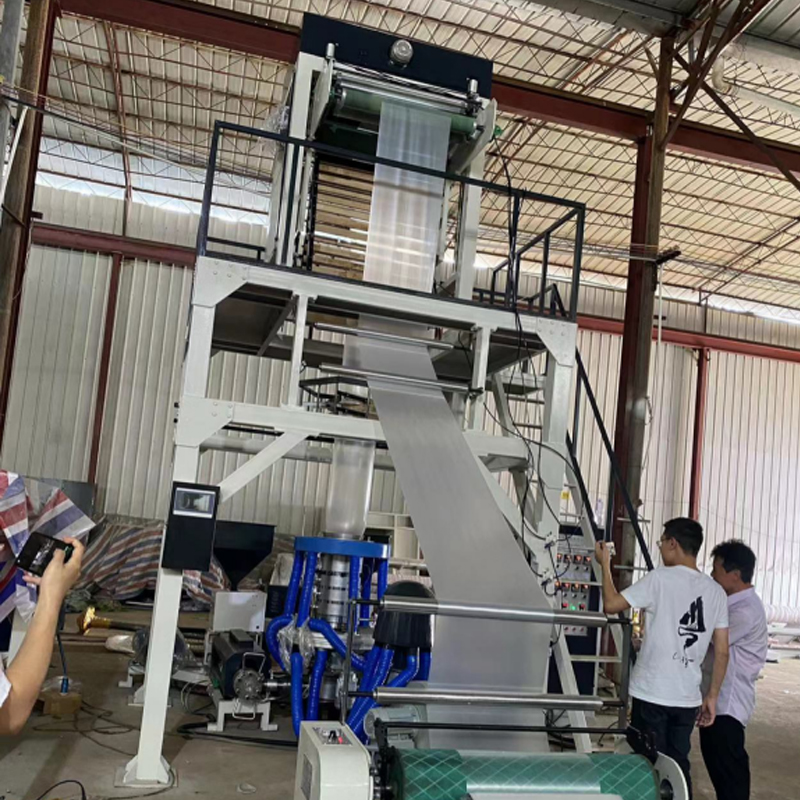

CS-50*2_700ABA Film Blowing Machine
| Film bubble stabilising device | Retainer bar type bubble stabilising frame (separately adjustable) | |
| Herringbone clamp | Wooden grill split type (adjusted separately) | |
| Guide roller diameter (mm) | 60mm (Aluminium) | |
| Diameter of traction roller (mm) | 130mm (Silicone) | |
| C. Winding section | ||
| Winding machine structure | Friction back rewind Single rewind | |
| Winding method | Friction winding | |
| Winding roll diameter (mm) | 250mm (Horizontal diamond pattern) | |
| Length of winding roll (mm) | 900mm | |
| Winding motor | Three-phase torque motor | Shui On |
| Rewind shaft structure | Ordinary shaft | |
| Paint colour | Beige | |
| D. Mould head portion | ||
| Mould calibre (mm) | 50. ABA mould head | Guangzhou |
| Mould structure | Internal spiral, centre feed Rotary | |
| Die head heating ring | Stainless steel heating ring | |
| Machine head, die head material | 45# steel heat treatment, chrome plated, polished | |
| Extruder output | 60-80kg per hour | |
| E. Cooling section | ||
| Configuration of wind ring and wind sheet | 700 type double wind ring, according to the mould configuration of the wind sheet | |
| Cooling blower | 2.2Kw | Taizhou |
| Temperature control mode | Intelligent double digital display type, temperature control table | Shanghai Yatai |
| F. Equipment size (mm) | l*w*h 5200*2000*4200 | |
| G. Equipment weight | 1800Kg |
Application Range
Film from this machine is used across common packaging products:
1. Shopping bags and vest-style carrier bags sold in supermarkets and convenience stores.
2. Household rubbish bags and kitchen waste bags that need reasonable strength at low cost.
3. Courier and express packaging film that will later be printed and converted into mailer bags.
4. General packaging film for garments, stationery, food items, and light industrial goods.
5. Continuous film rolls that feed directly into bag-making machines for flat bags or continuous-roll products.
6. Film for simple protective wraps and secondary packaging used in warehouses and factories.
These uses stay within the published width and thickness limits and focus on everyday commercial demand.
Core Functions
The machine carries out the main steps of film production in a compact layout:
Two φ50 alloy screws (38CrMoAl, L/D 32:1) driven by 11 kW motors with frequency conversion, running at 0–85 r/min.
ABA mould head with 50 mm calibre, internal spiral design and centre feed, allowing different materials in the outer and middle layers.
700-type double air ring and 2.2 kW cooling blower that stabilise the bubble and control cooling.
Traction section with 900 mm roll surface, 1.5 kW frequency-controlled motor, and speed range of 0–80 m/min.
Friction winding system with single rewind and horizontal diamond-pattern rolls for neat finished rolls.
Overall frame built from square steel, finished in off-white with turquoise railings, giving a solid and practical working unit.
OEM/ODM Explanation
Wenzhou Chaoshun Machinery Co., Ltd. supports OEM and ODM work on the CS-50×2 ABA Mould Head Film Blowing Machine. Customers can discuss changes to the mould head, air-ring configuration, winding layout, motor brands, or colour scheme to match their brand or local requirements.
Because the company also builds bag-making and printing machines, it can help coordinate a complete film-to-bag production line. Buyers who need private labelling or specific technical adjustments can raise those points directly with the factory.
Customer Pain Point Solutions
High material cost is lowered by the ABA structure that allows recycled or cheaper resin in the middle layer while keeping quality outer layers.
Inconsistent film thickness that causes sealing or printing problems is reduced by the internal-spiral ABA mould head and controlled screw speeds.
Dependence on external film suppliers that creates delivery uncertainty is removed by producing the film on site.
Operator workload for basic adjustments is kept reasonable through frequency-conversion drives and digital temperature control.
Noise and reliability concerns with gearboxes are improved by the hard-tooth-face reduction units specified for this model.
These practical points help smaller and medium packaging plants keep production steady without over-investing in larger equipment.
