Main technical parameters of machinery

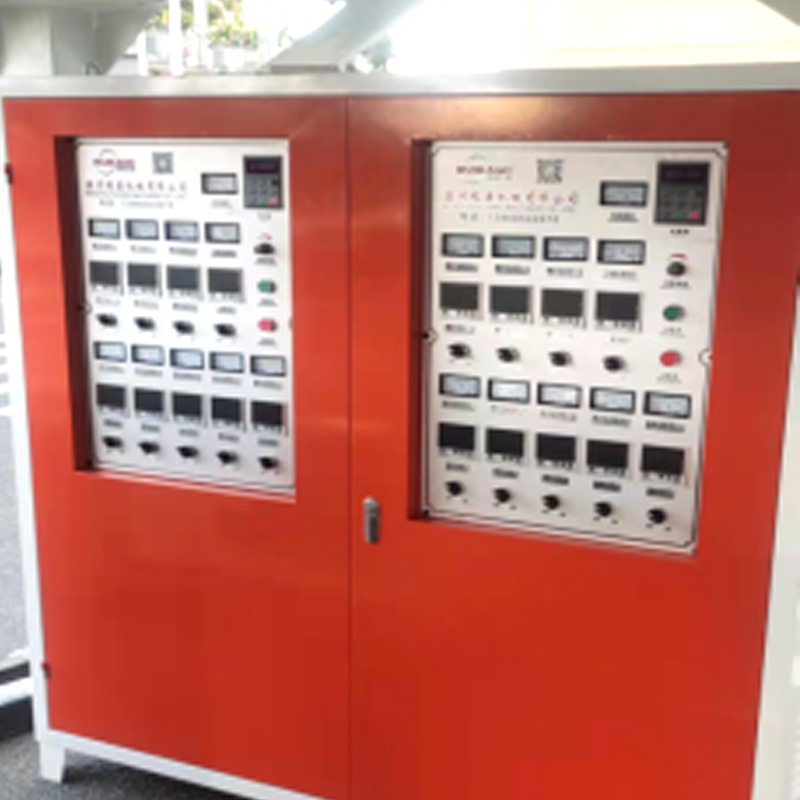

 The main control system of the whole machine: 1 set
The main control system of the whole machine mainly consists of PLC control system, colour touch human-machine interface, driving motor, AC digital loss frequency converter and electrical control cabinet, etc. It mainly serves as the operation control part of the whole machine, and the advanced control system can make the whole machine run smoothly and efficiently.

The whole machine screw extruder unit: 1 set of three
The main machine screw extruder unit is mainly composed of AC digital frequency conversion motor, hardened gear reducer, barrel, extrusion screw, connector and screen changer, etc. The main function is to suck the resin particles into the hopper of the automatic suction machine and send them to the screw feeder, the resin particles into the screw are heated up to the melting state and extruded to the screen changer, the filtered material is smoothly fed into the die head and screw connector, and then into the die head, and then into the screen changer. After filtering, the material is smoothly fed into the die head through the connector between the die head and the screw.

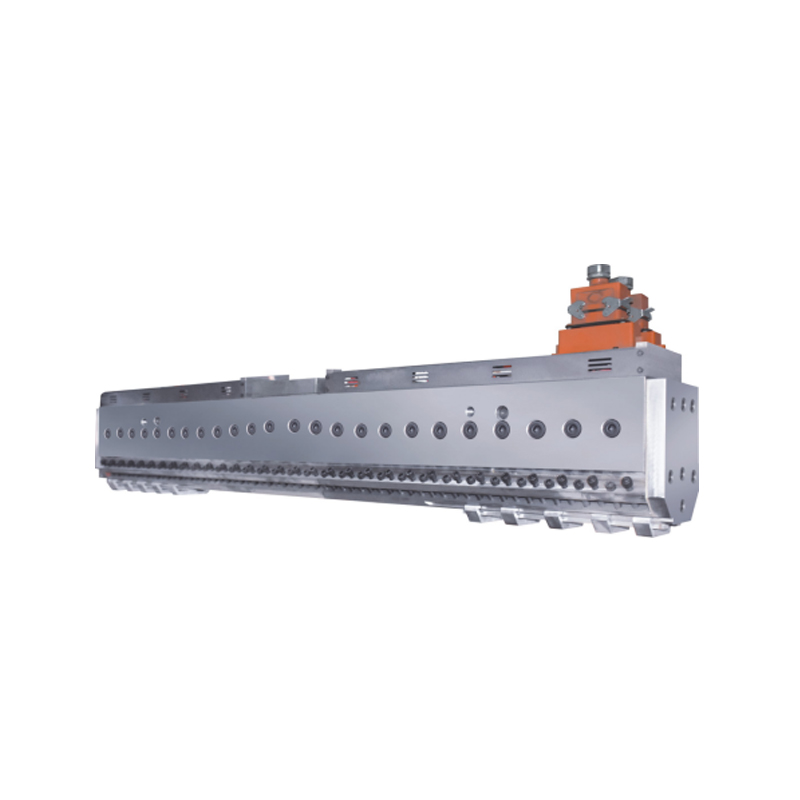

Extrusion die head: 1 set of 2 sets

 Extruding flat die head is mainly multi-layer imported die steel after special tempering made of die head, built-in hanger type runner, built-in runner surface plated with imported hard chrome material, with high hardness, corrosion prevention, reduce the resin on the flat die head of the runner of the adhesion and wear.

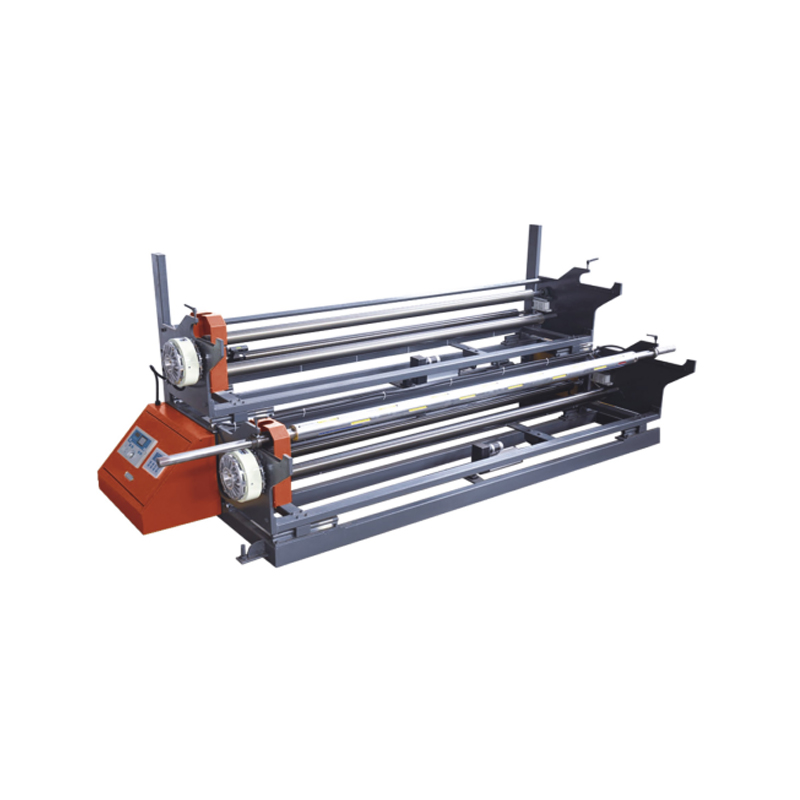

Dual-position unwinding frame: 1 set

Dual-station unwind frame is mainly composed of dual-station dual air shaft unwind, dual deskew control system, dual magnetic powder tension control system, etc. The whole machine is made of steel plate body. The main function is to put the composite materials such as pearl film, aluminium film, co-extruded film and other composite materials in this station.

Host bubble composite moulding machine and transmission system: 1 set

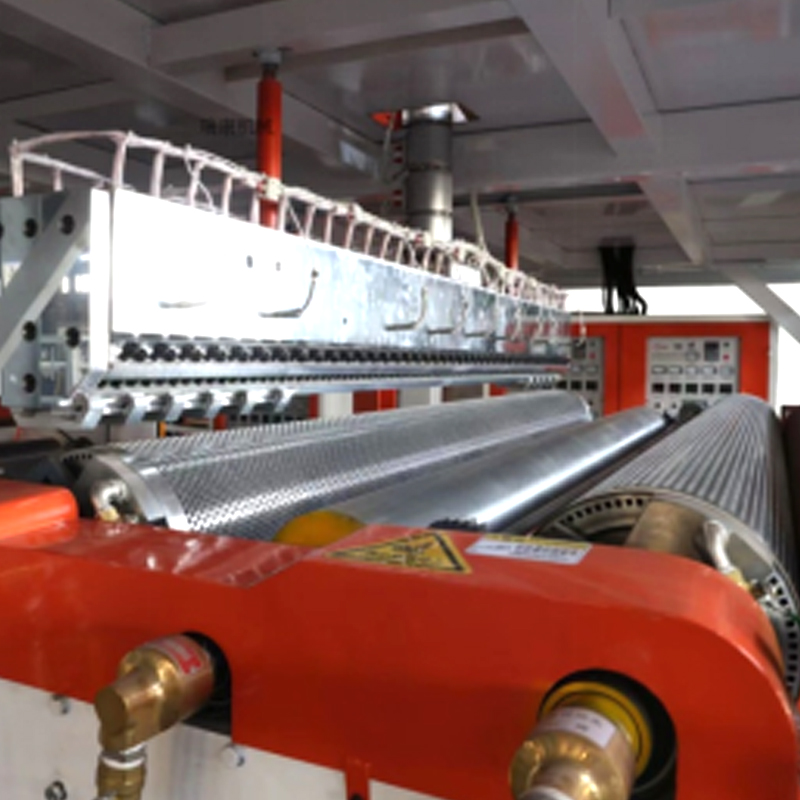

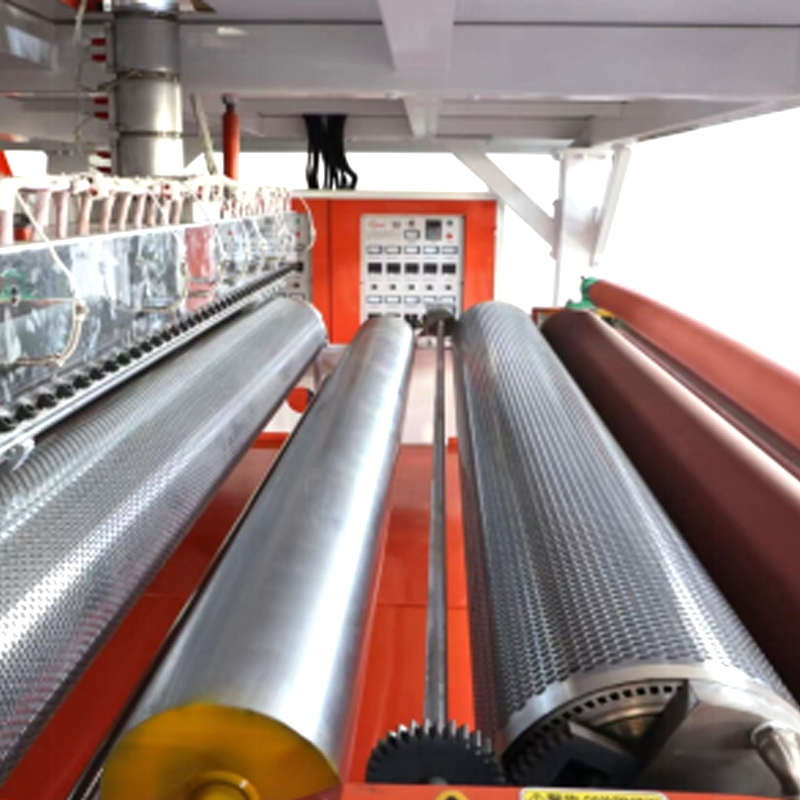

The main machine bubble composite moulding machine mainly has bubble rollers, silicone rollers, pressure rollers, transition rollers, spreading rollers and so on, each roller is equipped with rotary joints connected to the cooling circulating water system. Equipped with gear reducer transmission system through the chain and sprocket will be connected to each roller, bubble roller with vacuum negative pressure suction system, the main role of the host bubble composite moulding machine is to extrusion of two layers of sheet material processing into a bubble or bubble and composite composite materials.

Sub-machine bubble lamination moulding machine and transmission system: 1 set

The secondary bubble lamination moulding machine is mainly composed of flat rollers, silicone rollers, pressure rollers, transition rollers, spreading rollers, etc. Each roller is equipped with a rotary joint connected to the cooling water circulation system. Equipped with gear reducer transmission system through the chain and sprocket will be connected to each roller, bubble rollers are equipped with vacuum negative pressure suction system, the main role of the vice machine bubble composite moulding machine is to extrude a layer of sheet material as a bubble of the film layer composite on the bubble.

Online traction slitting unit: 1 set

Online traction slitting unit mainly has flat rollers, pressure rollers, spreading rollers and other components, each roller is equipped with rotary joints connected to the cooling circulating water system, the slitting system mainly has a knife frame, blades, waste guide and other parts of the composition, equipped with a gear reducer transmission system through the chain and sprocket will be connected to each roller, the main body of the main bubble composite moulding machine's main role is to be the bubble or composite bubbles on-line cutting into different widths of the material and transfer to the winding device. material and transfer it to the winding device.

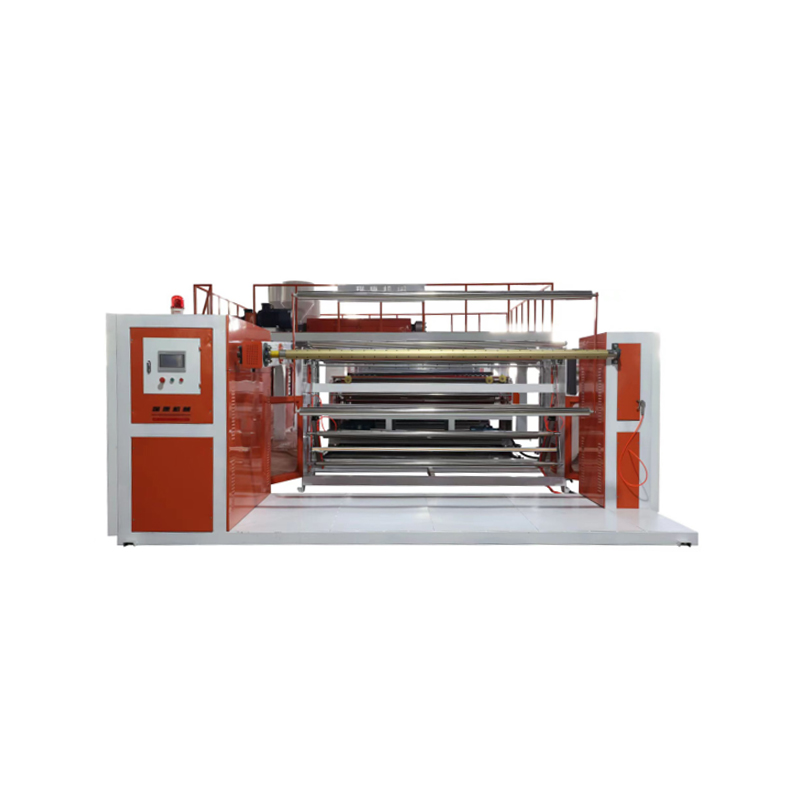

Automatic double-station cantilever winding machine (with PLC control system): 1 set

Full-automatic double-station cantilever rewinder mainly consists of on-line non-stop fly cutter slitting system and double-motor rewinding system, which can automatically slit and rewind according to the set length of finished products.

The whole machine protection device: 1 set
The protection device of the whole machine mainly consists of warning labels, mechanical guards and other components, electrical protection mainly in the hazardous areas have emergency stop button. When one of these buttons is pressed, the whole production line will stop working.
