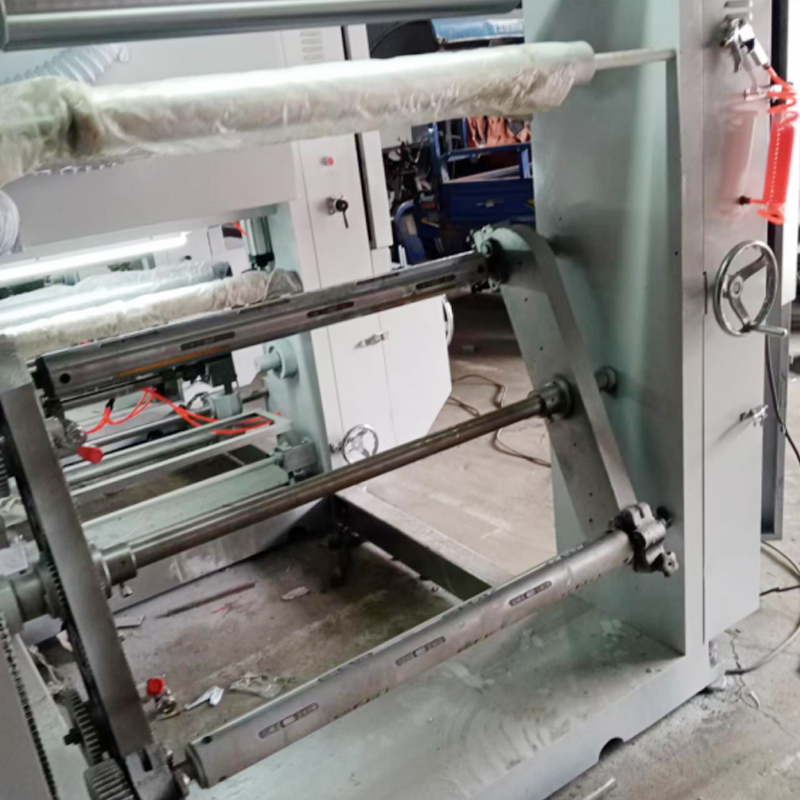

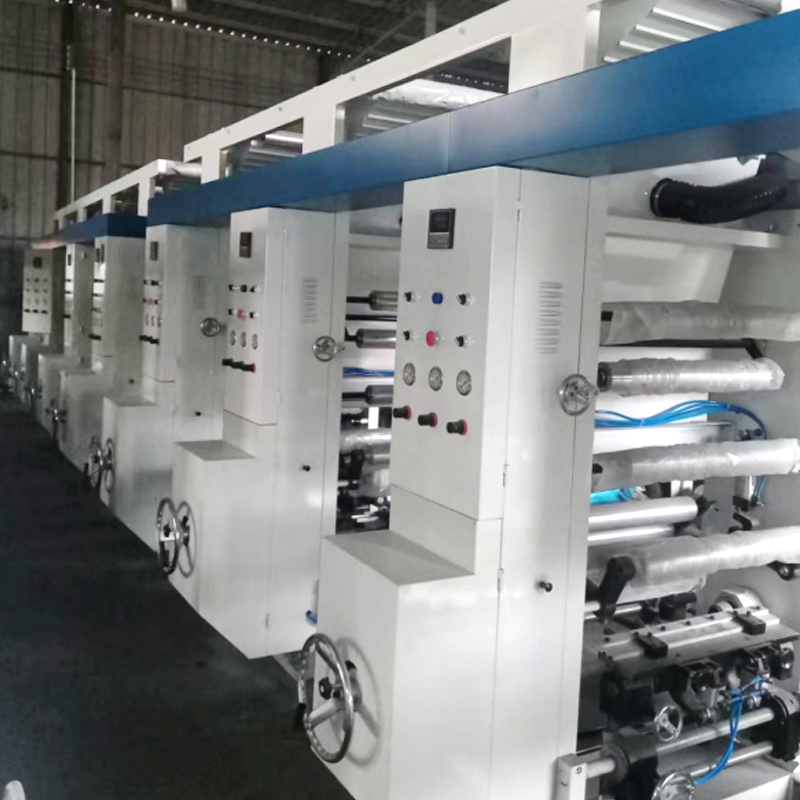

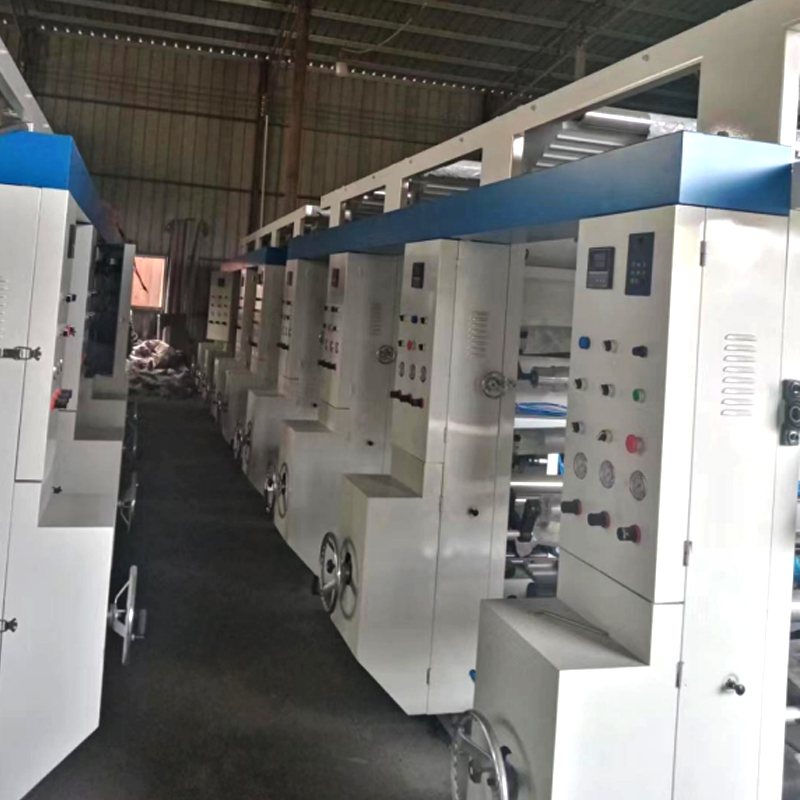

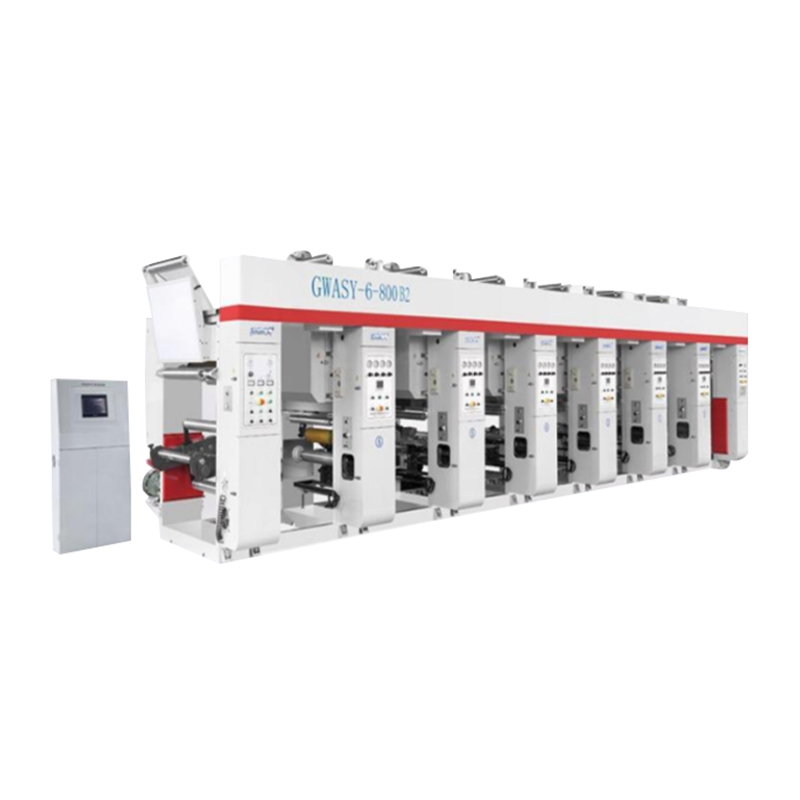

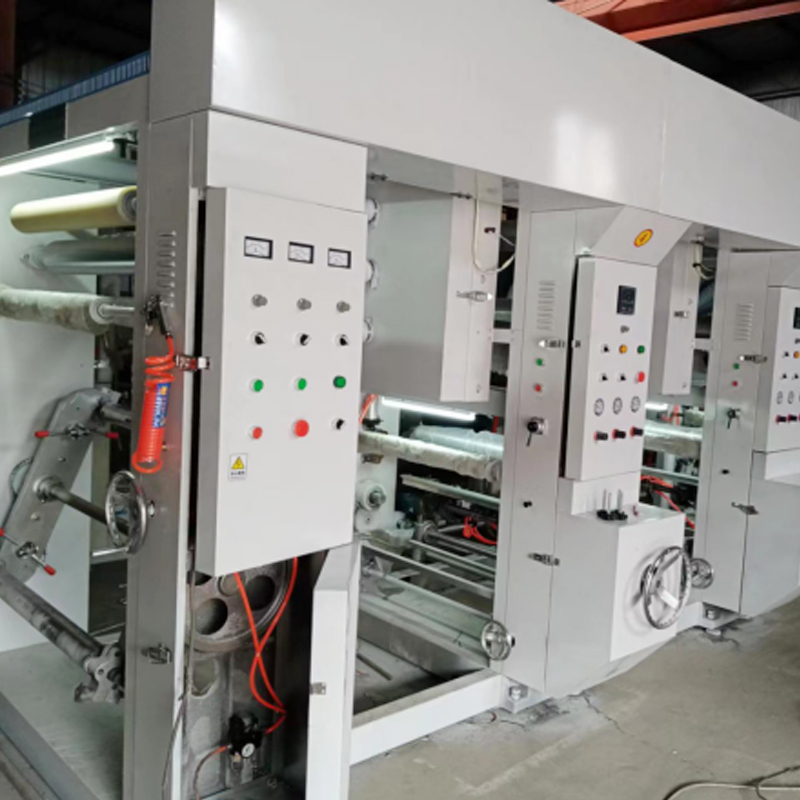

1050 Wide 8 Colours Three Motors Computer Shaftless Printing Machine Gravure Press Machine

This machine is used for printing BOPP, PE, PET, PVC, paper and other roll-type materials, 2-colour linear arrangement of the combination of gravure printing machine, the use of technologically advanced control system, the unique array of circular holes air curtain hot air drying, high-speed work; high-quality materials, high-precision machining to ensure that the entire machine excellent rigidity and work stability, people-oriented design concept to provide operators with full convenience.

Contact Us Watch The Video 1050 Wide 8 Colours Three Motors Computer Shaftless Printing Machine Gravure Press Machine
1050 Wide 8 Colours Three Motors Computer Shaftless Printing Machine Gravure Press Machine
PREV：Fully Biodegradable Blown Film Printing Machine
NEXT：No next article
1050 Wide 8 Colours Three Motors Computer Shaftless Printing Machine Gravure Press Machine

  • Product Specifications

    Composition
    Printing group unit 2
    Electrical system 1 group

    Main parameters
    Flow                                direction                          Right to left (operating surface)
    Number of printing colours                     2
    Maximum material width                 1050mm
    Maximum printing width                58mm
    Maximum machine speed                80m/min
    Printing              speed                  10-70m/min (Roller diameter ≥Φ160mm)
    Printing speed varies according to printing material, layout, printing ink, printing process and operator's level.
    Diameter of printing plate              Φ120mm~Φ300mm
    Width of printing plate             1050mm
    Registration accuracy  　　      Longitudinal comprehensive colour registration accuracy of about ±0.12mm (POBB-PET)
    Tension range           2~50kg
    Imprinting force                400kg
    Squeegee runout              ±5mm
    Drying method              Electric heating (12kw) 3 colours
    Main motor power            AC 4kw*1
    Machine appearance
    Model YAD-800/1100S YAD-800/1100S
    Core Diameter Ф76mm Ф76mm
    Roll Diameter Ф600mm Ф600mm
    Roll Diameter Ф110-Φ300mm Ф110-Ф300mm
    Printing width 800mm 1100mm
    Overprint precision ±0.15mm ±0.15mm
    Printing speed 60-150m/min 60-150m/min
    Overall Dimension 14500x2150x2850mm 14500x2450x2850mm
    Total power 135kw 155kw
    Weight of the whole machine (approx.) 17000kg 20000kg
