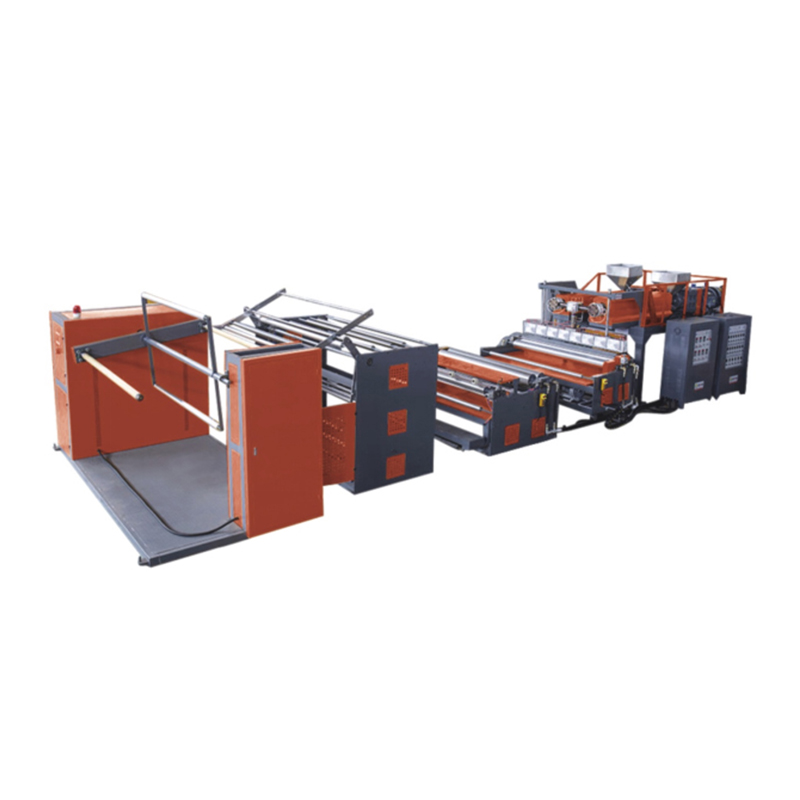

1200-1600 Type Single-Layer Bubble Wrap Film Machine

Machine Overview

The 1200-1600 Type Single-Layer Bubble Wrap Film Machine processes HDPE and LLDPE resin, and it's built to handle a fairly wide range of output specs: film width is adjustable from 10mm up to a maximum of 1600mm, and it can wind product rolls up to 1600mm in diameter. Maximum extrusion output is 200kg per hour, with film thickness adjustable between 25gsm and 200gsm, and the machine holds thickness uniformity within 3% — a meaningful number for buyers concerned about consistent cushioning performance across a roll. Mechanical speed tops out around 30m/min, though actual production speed depends on the specific material and process settings being used.

On the practical side, the whole 1200-1600 Type Single-Layer Bubble Wrap Film Machine runs on standard 380V, 50Hz, 3-phase power, draws 100KW, and needs a 7.5KW screw air compressor with a 1 cubic metre air storage tank to maintain constant air pressure above 6KG. The machine itself takes up about 9m x 2.8m x 2.5m of floor space and weighs around 6000KG, with the manufacturer recommending 500–1000 square metres of total floor space when factoring in storage.

Specific Applications
1. E-commerce courier and logistics packaging — this is the primary use case described for this machine, producing the bubble film used to cushion goods during shipping and handling
2. General moisture and impact protection packaging — the bubble film produced provides both moisture resistance and cushioning, protecting goods against handling damage during transport
3. Small to mid-size product protection — with a maximum roll diameter and width both capped around 1600mm, this machine suits standard-size bubble wrap production rather than oversized industrial film runs
4. HDPE and LLDPE-based bubble film production — plants specifically working with these two resin types, whether virgin or blended, can run them directly on this machine
5. Standard-gauge bubble wrap production — the 25–200gsm thickness range covers most common bubble wrap gauges used in general logistics and e-commerce packaging, from lighter protective wrap to heavier-duty film

Customer Pain Points Solved

Needing standard bubble wrap without overinvesting in multi-layer equipment. Not every buyer needs three-layer laminated film — for standard e-commerce and logistics cushioning, a single-layer machine covers the requirement directly, without the added cost of a multi-extruder setup built for heavier-duty film.

Inconsistent film thickness affecting cushioning performance. Uneven thickness across a roll can mean inconsistent protection for packaged goods. This 1200-1600 Type Single-Layer Bubble Wrap Film Machine's 3% extrusion thickness uniformity is built to keep film quality consistent from one section of the roll to the next.

Uncertainty around setup requirements before purchase. Buyers evaluating a new production line need to know what infrastructure it requires. This 1200-1600 Type Single-Layer Bubble Wrap Film Machine's power, air supply, and space requirements are clearly defined upfront — 380V 3-phase power at 100KW, a 7.5KW air compressor with 1 cubic metre storage tank, and roughly 50 square metres of floor space for the machine itself.
